YC-70 Electric Brake Motor — 70mm Frame, 15W / 20W
110V / 220V · 15W / 20W · Gear Ratio 1:3 – 1:860
The YC-70 Electric Brake Motor integrates a fail-safe electromagnetic braking system into a 70mm AC gear motor. On power interruption, the spring-loaded electromagnetic brake engages within 50ms, locking the output shaft and preventing unintended load movement. Available in 15W and 20W with up to 1:860 gear ratio, it is the preferred choice for vertical load handling, positioning systems and safety-critical automation.
Motor Speed1250 / 1500 r/min
Product Features
Key design and engineering features of the YC-70 Brake AC gear motor
✓
Fail-safe electromagnetic brake engages in under 50ms on power interruption
✓
Spring-loaded design ensures shaft locks automatically — no power required to hold position
✓
100% pure copper winding for reliable 24/7 continuous duty operation
✓
Wide ratio range 1:3 to 1:860 for precise low-speed output
✓
Dual voltage 110V/60Hz and 220V/50Hz for global markets
✓
Rated for 100,000+ brake engagement cycles for high-cycle industrial environments
Technical Specifications
Full parameter data and dimensional drawings
📋 Performance Parameter Table

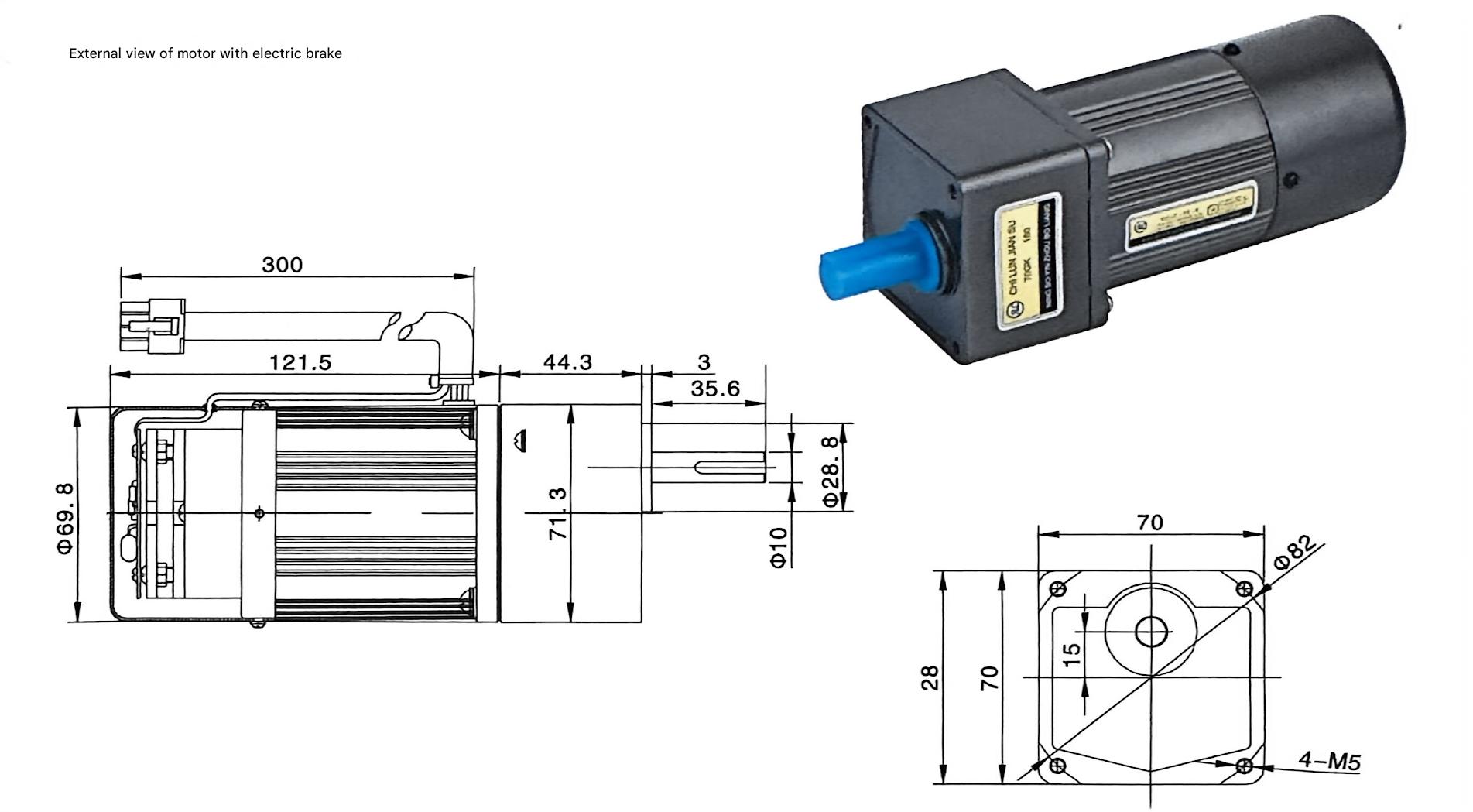

📐 Dimensional Drawing
| Parameter | Specification |
|---|
| Model | YC-70 Brake |
| Motor Type | AC Induction Motor |
| Rated Power | 15W / 20W |
| Supply Voltage | 110V / 220V |
| Frequency | 50Hz / 60Hz |
| No-Load Speed | 1250 / 1500 r/min |
| Gear Ratio Range | 1:3 – 1:860 |
| Output Shaft Diameter | Φ10mm |
| Frame Size | 70mm Square |
| Insulation Class | Class F (155°C) |
| Duty Cycle | S1 — Continuous 24/7 |
| Certification | ISO 9001 · CMA · CNAS · ILAC-MRA |
Applications
Typical industries and equipment where the YC-70 Brake excels
🏭
Industrial Automation
Conveyor drives, transfer lines, automated assembly and robotic actuator systems.
📦
Packaging Machinery
Filling, sealing, labeling and wrapping machine drives requiring precise speed control.
🔬
Laboratory Equipment
Sample handling, automated testing rigs and precision instrument drive systems.
🌱
Agricultural Automation
Irrigation control systems, automated seeders and greenhouse equipment drives.
Advantages
Why engineers and buyers choose MENG MOTOR for the YC-70 Brake
01
Fail-safe design eliminates risk of load drop on power failure
02
Brake integrated into motor body — no external brake unit required, reducing installation complexity
03
ISO 9001, CMA, CNAS, ILAC-MRA certified with full export documentation
04
OEM custom specifications available from MOQ 50 units
Frequently Asked Questions
Common questions about the YC-70 Brake AC gear motor
How does the electromagnetic brake work?+
When power is applied, an electromagnet releases the spring-loaded brake disc, allowing the motor to run freely. When power is cut, the spring clamps the brake disc against the rotor, locking the shaft within 50ms.
Can the brake be released manually?+
Yes. Most configurations include a manual release lever for maintenance or emergency shaft positioning without power. Please specify this requirement when ordering.
Is the brake suitable for vertical load applications?+
Yes. This motor is specifically designed for vertical loads such as hoists, lifts and inclined conveyors where preventing load drift on power-off is critical.
What is the brake holding torque?+
Brake holding torque varies by model. Please contact us with your load specification and we will confirm the suitable model and holding torque rating.
