Product Features
Key design and engineering features of the 25 Series
✓
Purpose-built molded shell housing for robust protection in hoisting environments
✓
High-torque gearbox design optimised for vertical lifting and load-holding duty
✓
100% pure copper winding for reliable sustained torque output
✓
Compact integrated motor-gearbox unit reduces installation complexity
✓
Rated for 24/7 continuous hoisting and lifting duty cycles
✓
Suitable for both powered lifting and passive load-holding applications
Technical Specifications
Full parameter data and dimensional drawings
📋 Performance Parameter Table

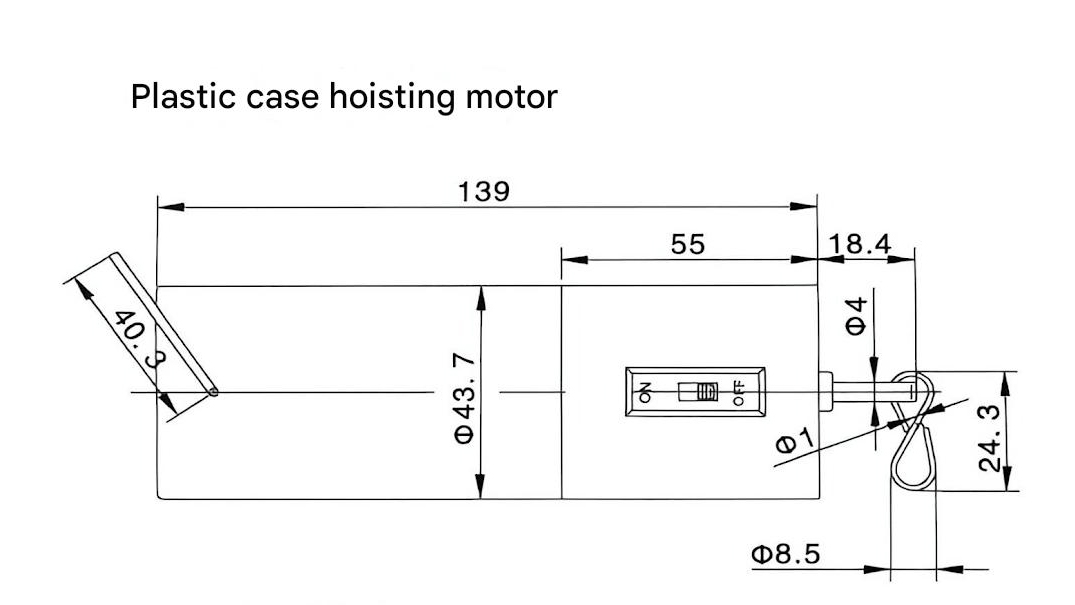

📐 Dimensional Drawing
| Parameter | Specification |
|---|
| Model | 25 Series |
| Motor Type | DC Gear Motor |
| Rated Power | See details |
| Supply Voltage | See details |
| No-Load Speed | See details |
| Gear Ratio Range | See details |
| Output Shaft Diameter | See details |
| Frame Size | See details |
| Duty Cycle | S1 — Continuous 24/7 |
| Certification | ISO 9001 · CMA · CNAS · ILAC-MRA |
Applications
Typical industries and equipment where the 25 Series excels
🏗️
Electric Hoists & Winches
Primary drive for electric hoists, cable winches and vertical material handling systems.
🎭
Stage & Theatre Equipment
Curtain lift drives, flying rig actuators and scenic element hoisting systems.
🏥
Medical Lifting Equipment
Patient lift drives, adjustable bed actuators and height-adjustable medical equipment.
🏠
Residential & Commercial Lifting
Garage door openers, dumbwaiter drives and automated storage lift systems.
Advantages
Why engineers and buyers choose MENG MOTOR for the 25 Series
01
Purpose-designed for hoisting — no need to adapt a general-purpose motor for lifting duty
02
Molded shell housing provides superior mechanical protection versus standard metal frames
03
ISO 9001, CMA, CNAS, ILAC-MRA certified — complete export documentation standard
04
OEM available from MOQ 50 units with custom voltage, ratio and housing specifications
Frequently Asked Questions
Common questions about the 25 Series
What makes this motor suitable for hoisting applications?+
The 25 Series is purpose-designed with a high-torque gearbox, robust molded shell housing and a winding optimised for the sustained torque demands of vertical lifting. General-purpose gear motors are not designed for the specific load profile of continuous hoisting duty.
Is a brake version available for load holding?+
Please contact us with your load-holding requirement. We can advise on brake motor configurations or alternative models with integrated electromagnetic brake for positive shaft lock on power-off.
What is the maximum lifting load capacity?+
Load capacity depends on the selected gear ratio, drum diameter and application geometry. Contact us with your lifting height, load weight and duty cycle for a specific model recommendation.
Can this motor be used for horizontal conveyor drives?+
Yes. While optimised for hoisting, the high-torque gearbox and robust housing also make it suitable for demanding horizontal drive applications. Contact us to confirm suitability for your specific application.
