Product Features
Key design and engineering features of the YC-60 AC gear motor
✓
100% pure copper winding for lower resistance, better heat dissipation and 40% longer service life
✓
Precision helical gearbox with hardened steel gears — operating noise below 48dB
✓
Compact 60mm square frame ideal for space-constrained industrial installations
✓
Dual voltage support: 110V/60Hz and 220V/50Hz — ready for global markets
✓
Available in ordinary and damped variants for flexible application matching
✓
Class F insulation (155°C rated) for reliable 24/7 continuous duty operation
Technical Specifications
Full parameter data and dimensional drawings

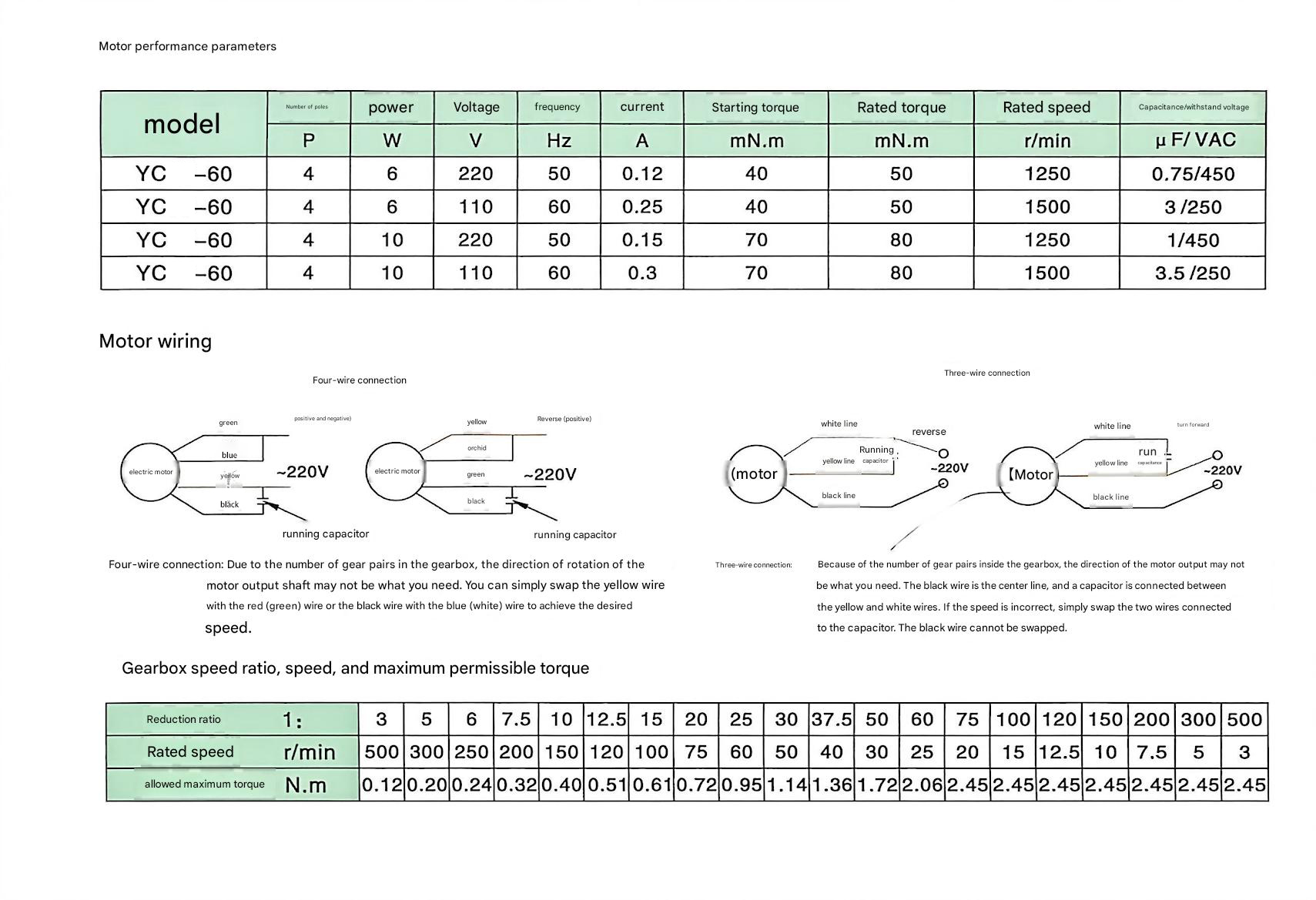

📋 Performance Parameter Table

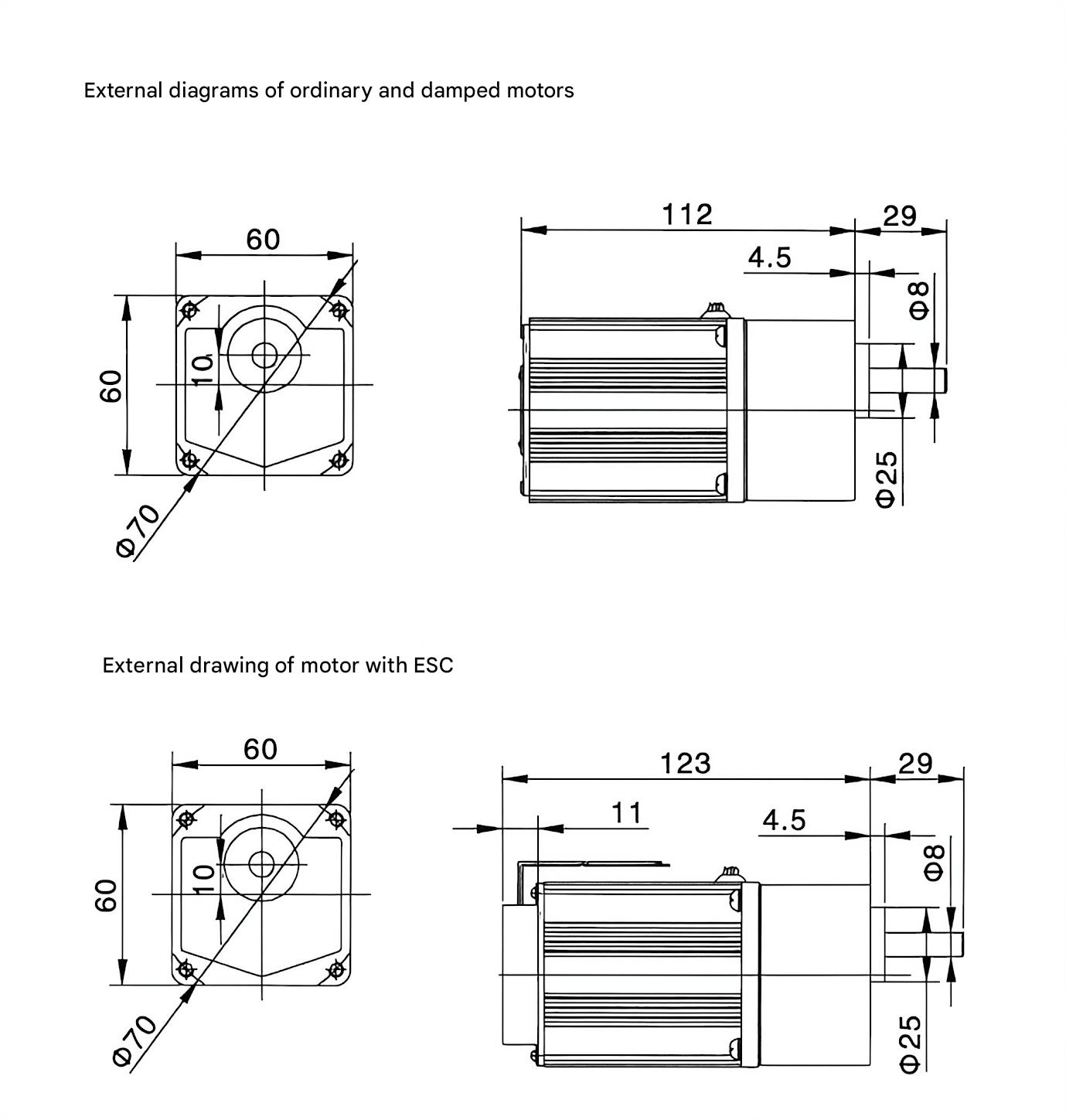

📐 Dimensional Drawing
| Parameter | Specification |
|---|
| Model | YC-60 |
| Motor Type | AC Induction Motor |
| Rated Power | 6W / 10W |
| Supply Voltage | 110V / 220V |
| Frequency | 50Hz / 60Hz |
| No-Load Speed | 1250 / 1500 r/min |
| Gear Ratio Range | 1:3 – 1:500 |
| Output Shaft Diameter | Φ8mm |
| Frame Size | 60mm Square |
| Insulation Class | Class F (155°C) |
| Duty Cycle | S1 — Continuous 24/7 |
| Certification | ISO 9001 · CMA · CNAS · ILAC-MRA |
Applications
Typical industries and equipment where the YC-60 excels
🏭
Industrial Automation
Conveyor drives, transfer lines, automated assembly and robotic actuator systems.
📦
Packaging Machinery
Filling, sealing, labeling and wrapping machine drives requiring precise speed control.
🔬
Laboratory Equipment
Sample handling, automated testing rigs and precision instrument drive systems.
🌱
Agricultural Automation
Irrigation control systems, automated seeders and greenhouse equipment drives.
Advantages
Why engineers and buyers choose MENG MOTOR for the YC-60
01
Factory direct pricing with no middleman markup — competitive OEM bulk pricing available
02
ISO 9001, CMA, CNAS and ILAC-MRA certified — full export documentation provided
03
Ships within 7–15 days for standard models; dedicated OEM production lines available
04
English-speaking technical support team with 24/7 WhatsApp response
Frequently Asked Questions
Common questions about the YC-60 AC gear motor
What is the difference between ordinary and damped versions?+
The ordinary version runs freely when power is cut. The damped version uses a friction damping mechanism that slows the output shaft to a stop, preventing load drift — ideal for applications requiring controlled deceleration.
Can I reverse the rotation direction?+
Yes. For the four-wire connection, swap the yellow and red/green wires. For the three-wire connection, swap the two capacitor wires (yellow and white). The black center wire cannot be swapped.
What gear ratio should I choose?+
Divide your required output speed by the motor's rated speed (1250 or 1500 r/min). For example, if you need 25 r/min output, choose a 1:50 ratio. Contact us for application-specific selection support.
Is OEM/custom specification available?+
Yes. We support custom voltage, shaft diameter, gear ratio, frame color and branding from MOQ 50 units. Contact us via WhatsApp for OEM pricing.
