Product Features
Key design and engineering features of the YC-90 Brake
✓
90W highest power in YC series with integrated fail-safe electromagnetic brake
✓
Brake rated for 100,000+ engagement cycles in high-frequency industrial environments
✓
Spring-loaded brake locks shaft within 50ms of power interruption — no power required to hold
✓
Heavy-duty Φ14mm output shaft for maximum radial and axial load capacity
✓
100% pure copper winding with Class F insulation for 24/7 continuous duty
✓
Dual voltage 110V/60Hz and 220V/50Hz for global deployment
Technical Specifications
Full parameter data and dimensional drawings
📋 Performance Parameter Table

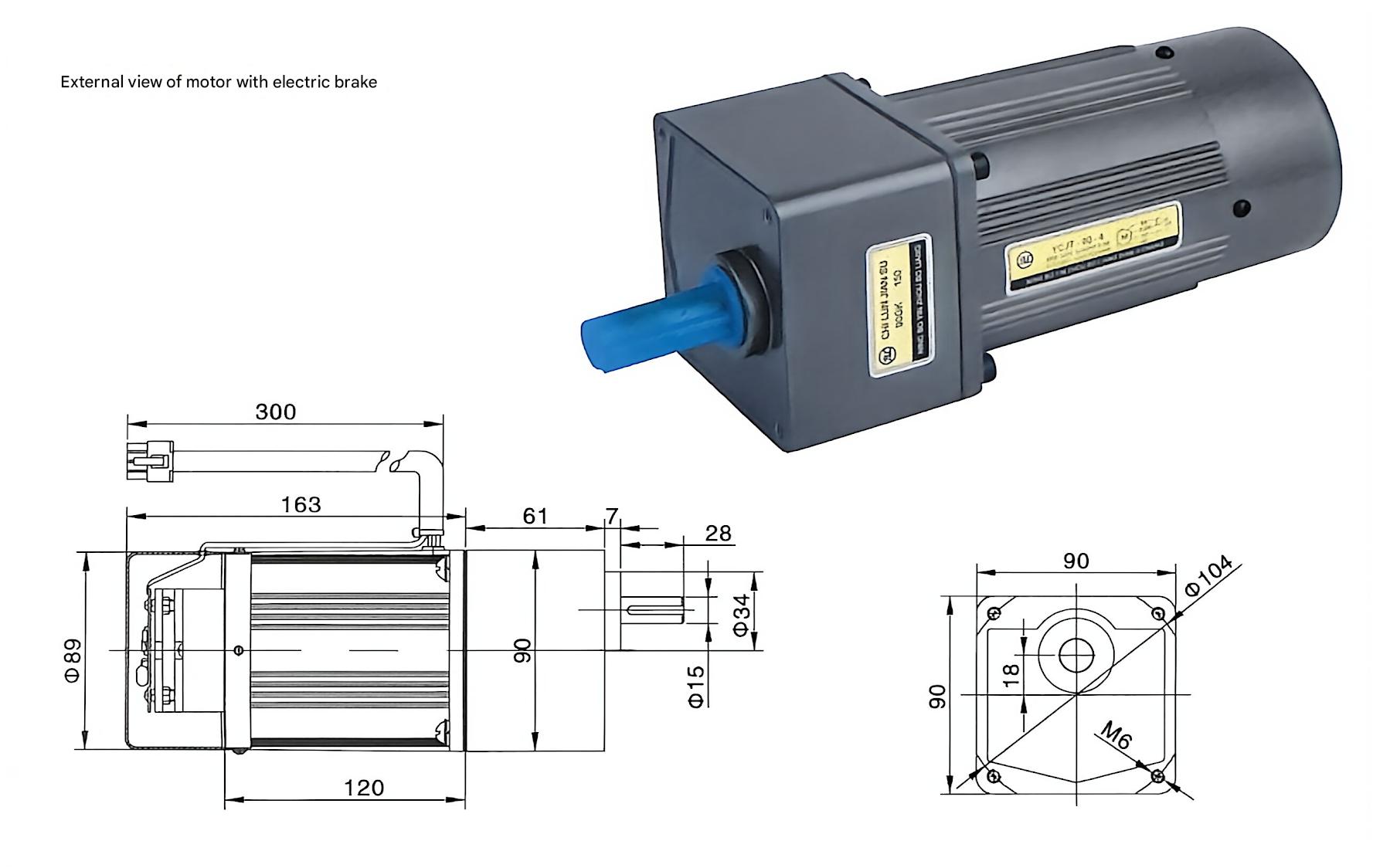

📐 Dimensional Drawing
| Parameter | Specification |
|---|
| Model | YC-90 Brake |
| Motor Type | AC Induction Motor |
| Rated Power | 90W |
| Supply Voltage | 110V / 220V |
| No-Load Speed | 1250 / 1500 r/min |
| Gear Ratio Range | 1:3 – 1:300 |
| Output Shaft Diameter | Φ14mm |
| Frame Size | 90mm Square |
| Insulation Class | Class F (155°C) |
| Duty Cycle | S1 — Continuous 24/7 |
| Certification | ISO 9001 · CMA · CNAS · ILAC-MRA |
Applications
Typical industries and equipment where the YC-90 Brake excels
🏗️
Heavy Lifting & Hoisting
Industrial hoists and vertical transfer systems requiring positive load hold at high power.
🚗
Automotive Assembly Lines
Torque tool stations, fastening indexers and part transfer systems requiring precise stop-hold.
🌊
Industrial Valve Control
High-torque valve actuators that must lock position safely on power loss in process plants.
📦
Automated Warehousing
Heavy pallet transfer units and sortation systems requiring reliable high-power brake engagement.
Advantages
Why engineers and buyers choose MENG MOTOR for the YC-90 Brake
01
Highest power brake motor in the YC range — handles the most demanding load-holding applications
02
100,000+ cycle rating reduces maintenance intervals in high-frequency positioning systems
03
ISO 9001, CMA, CNAS, ILAC-MRA certified — complete export documentation standard
04
OEM custom specifications available from MOQ 50 units including custom brake torque ratings
Frequently Asked Questions
Common questions about the YC-90 Brake
Why choose the 90W brake motor over the 40W/60W version?+
The 90W model provides significantly higher torque output, making it suitable for heavier loads that exceed the capacity of the 40W/60W brake motor. If your load calculation requires more than 60W of continuous drive power with brake holding, the 90W is the correct choice.
How many brake cycles can this motor handle?+
The electromagnetic brake is rated for over 100,000 engagement cycles under standard operating conditions, making it suitable for very high-frequency start-stop positioning applications.
Does the brake require a separate power supply or control circuit?+
No. The brake coil is powered from the same supply as the motor. When the motor is energised, the brake releases automatically. When power is cut, the brake engages — no additional wiring or control required.
Is this motor available with a manual brake release?+
Yes. A manual release lever can be specified for maintenance access or emergency shaft positioning. Please indicate this requirement when requesting a quotation.
