Product Features
Key design and engineering features of the YC-90 ESC AC gear motor
✓
Integrated ESC provides stepless 0–100% speed control — no external inverter required
✓
90W high-power output for demanding variable-speed industrial applications
✓
Heavy-duty Φ14mm shaft for high radial and axial load capacity
✓
100% pure copper winding with Class F insulation for 24/7 continuous duty
✓
Wide gear ratio range 1:3 to 1:300 for precise output speed selection
✓
Dual voltage 110V/60Hz and 220V/50Hz for global deployment
Technical Specifications
Full parameter data and dimensional drawings
📋 Performance Parameter Table

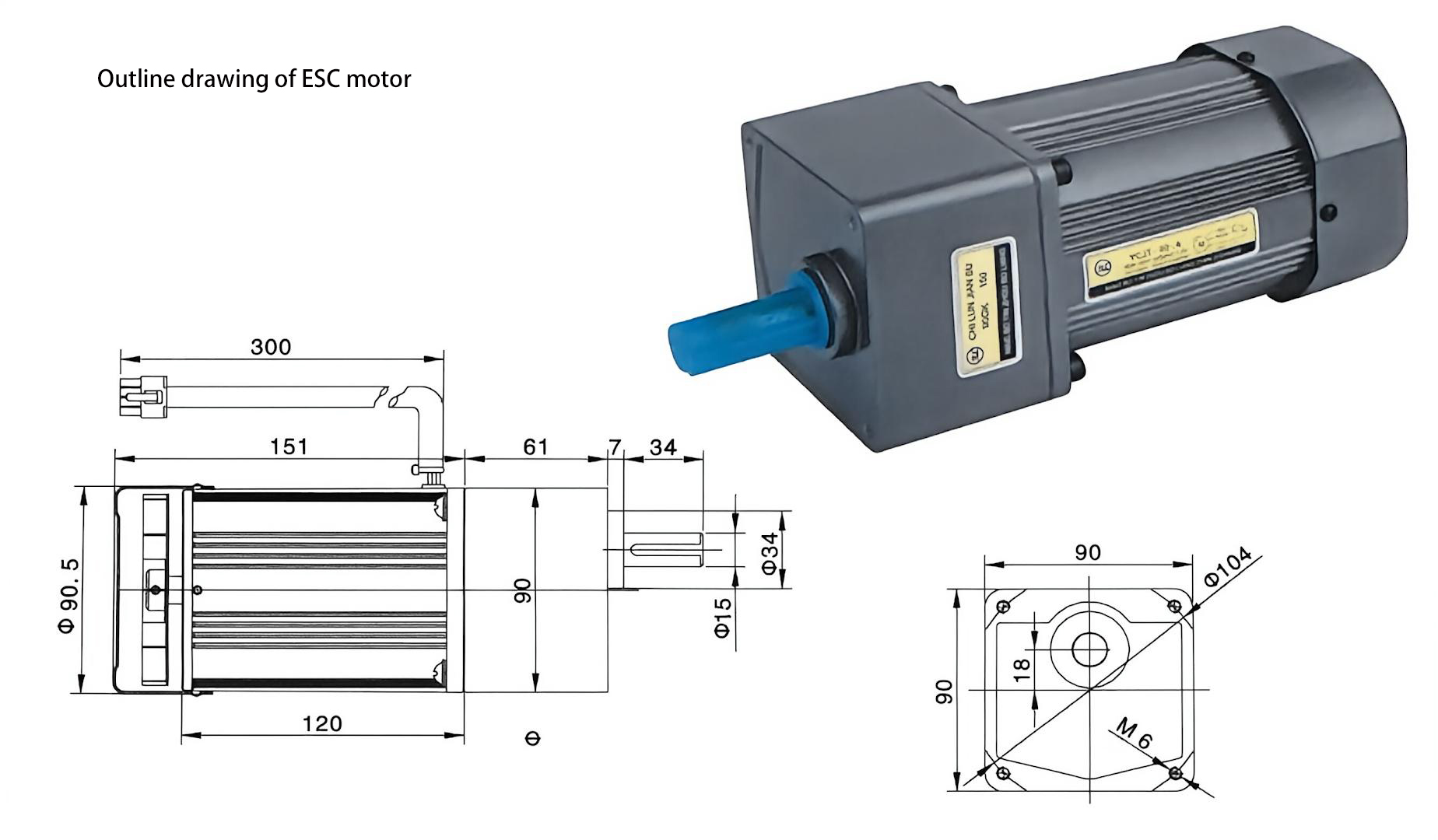

📐 Dimensional Drawing
| Parameter | Specification |
|---|
| Model | YC-90 ESC |
| Motor Type | AC Induction Motor |
| Rated Power | 90W |
| Supply Voltage | 110V / 220V |
| Frequency | 50Hz / 60Hz |
| No-Load Speed | 1250 / 1500 r/min |
| Gear Ratio Range | 1:3 – 1:300 |
| Output Shaft Diameter | Φ14mm |
| Frame Size | 90mm Square |
| Insulation Class | Class F (155°C) |
| Duty Cycle | S1 — Continuous 24/7 |
| Certification | ISO 9001 · CMA · CNAS · ILAC-MRA |
Applications
Typical industries and equipment where the YC-90 ESC excels
🖥️
Vending & Retail Automation
Variable-speed product delivery mechanisms and dispensing systems requiring smooth speed control.
🔬
Laboratory & Scientific Instruments
Precise speed-controlled sample handling, centrifuge feed and automated analytical equipment.
🍵
Food Processing Lines
Variable-speed conveyor drives and dispensing systems in continuous food production environments.
📡
Antenna & Positioning Systems
Smooth variable-speed azimuth and elevation drive for satellite dishes and radar positioners.
Advantages
Why engineers and buyers choose MENG MOTOR for the YC-90 ESC
01
Integrated ESC reduces system BOM cost versus separate motor plus VFD solutions
02
90W output handles heavy variable-speed loads that exceed smaller frame motor capacity
03
ISO 9001, CMA, CNAS, ILAC-MRA certified — complete export documentation standard
04
OEM custom ESC control interface and speed range available from MOQ 50 units
Frequently Asked Questions
Common questions about the YC-90 ESC AC gear motor
How is the ESC speed controlled?+
The integrated ESC includes an adjustment knob for manual speed setting, and most models also accept an external 0–5V analog signal for automated speed control from a PLC or controller.
Does the ESC affect the motor's torque output?+
The ESC maintains consistent torque delivery across the speed range. At very low speeds (below 20% of rated), torque may reduce slightly — contact us if your application requires high torque at very low speeds.
Can the ESC version run at full speed as a standard motor?+
Yes. Setting the ESC to 100% delivers the same performance as the standard non-ESC model. The ESC adds variable speed capability without compromising full-speed performance.
Is external speed control via PLC signal supported?+
Yes. Most ESC variants support a 0–5V or 4–20mA analog input for remote speed control from a PLC or automation controller. Please specify your control interface requirement when ordering.
