Product Features
Key design and engineering features of the CC2
✓
Robust gearbox construction for reliable high-torque output in demanding applications
✓
Wide gear ratio range 1:5 to 1:810 for diverse speed and torque requirements
✓
100% pure copper winding for efficient power conversion at 12V and 24V
✓
12V / 24V dual voltage for industrial DC supply and battery-powered systems
✓
Designed for 24/7 continuous duty in industrial embedded drive applications
✓
Compact design for integration into space-constrained industrial assemblies
Technical Specifications
Full parameter data and dimensional drawings

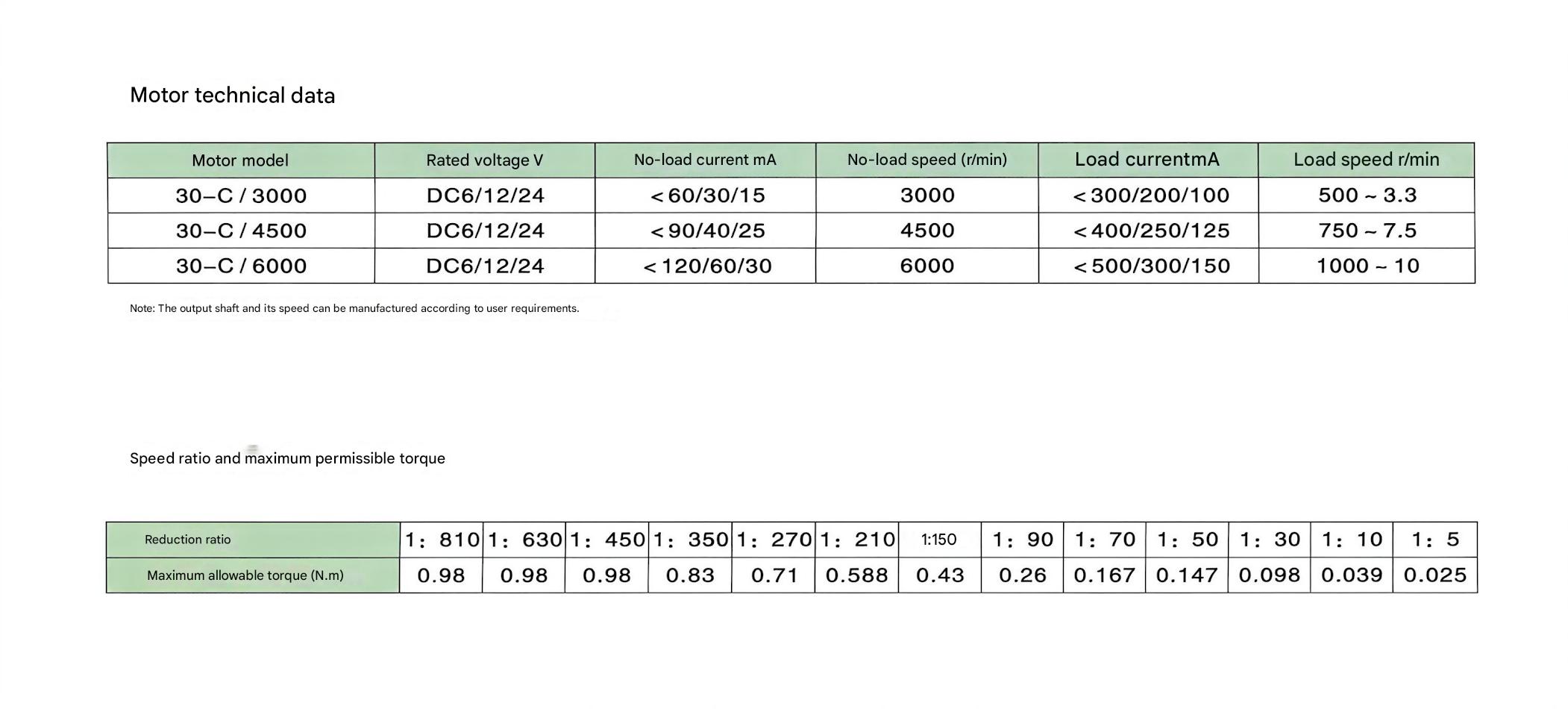

📋 Performance Parameter Table

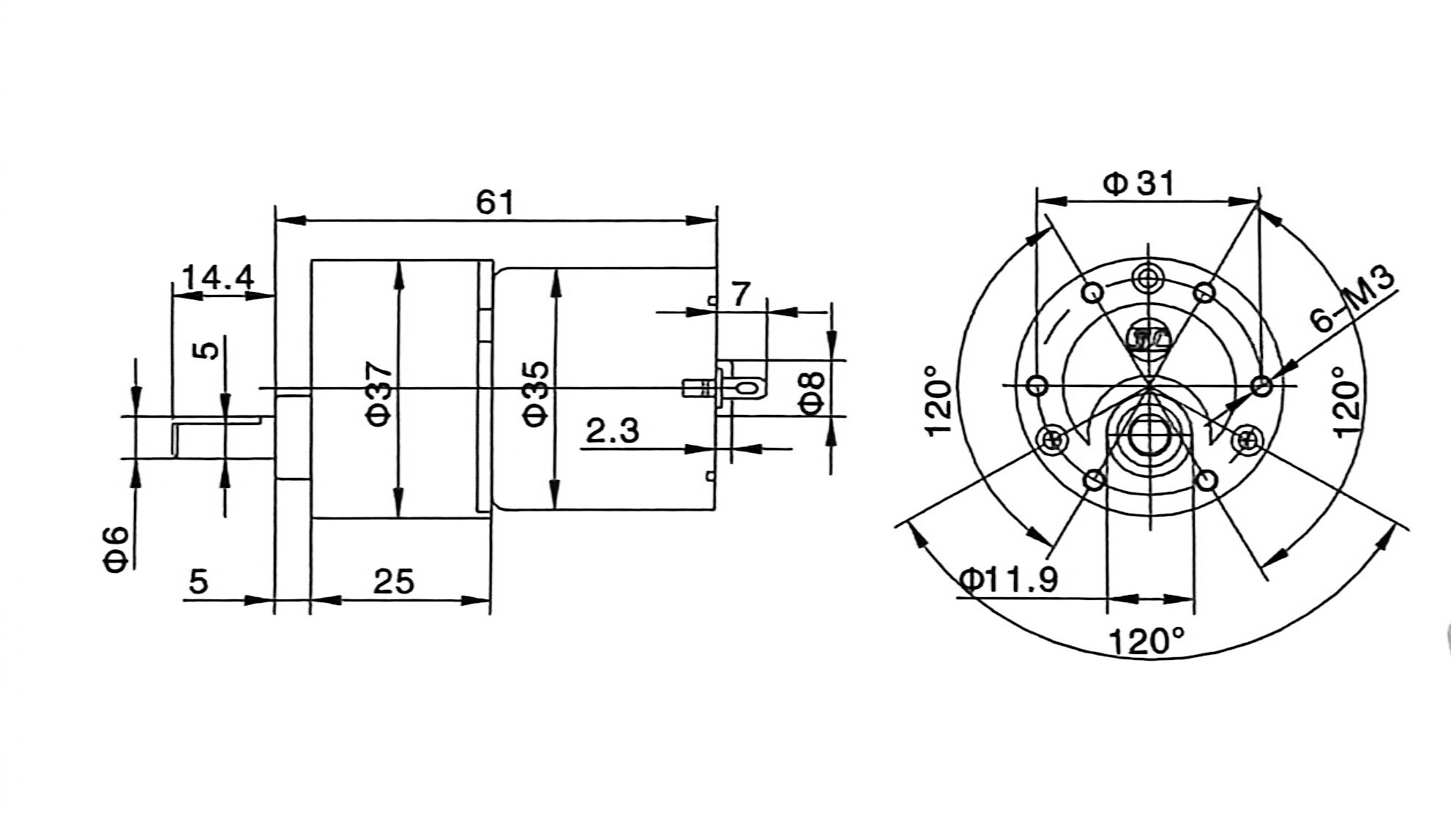

📐 Dimensional Drawing
| Parameter | Specification |
|---|
| Model | CC2 |
| Motor Type | DC Gear Motor |
| Rated Power | See details |
| Supply Voltage | 12V / 24V |
| No-Load Speed | See details |
| Gear Ratio Range | 1:5 – 1:810 |
| Output Shaft Diameter | See details |
| Frame Size | See details |
| Duty Cycle | S1 — Continuous 24/7 |
| Certification | ISO 9001 · CMA · CNAS · ILAC-MRA |
Applications
Typical industries and equipment where the CC2 excels
🌊
Marine & Outdoor Equipment
Waterproof-ready drives for marine winches, solar trackers and outdoor gate openers.
💡
Building Automation
HVAC damper drives, automated lighting controls and building management actuators.
🔬
Analytical Instruments
Sample carousel drives, filter wheel actuators and XY stage motors in laboratory equipment.
🏭
Light Industrial OEM
Custom OEM drives for specialised machinery requiring compact, reliable low-voltage DC drive.
Advantages
Why engineers and buyers choose MENG MOTOR for the CC2
01
Robust gearbox outlasts lighter-duty alternatives in demanding industrial environments
02
Pure copper winding delivers lower heat generation than aluminum-wound alternatives
03
ISO 9001, CMA, CNAS, ILAC-MRA certified — complete export documentation standard
04
OEM available from MOQ 50 units with custom voltage, shaft and ratio options
Frequently Asked Questions
Common questions about the CC2
What is the difference between CC1 and CC2?+
Both share the same ratio range (1:5–1:810) and voltage (12V/24V), but the CC2 features a more robust gearbox construction for applications with higher radial loads or more demanding duty cycles. Choose CC2 when durability under load is the priority.
Is this motor suitable for continuous outdoor use?+
The standard CC2 is suitable for indoor and sheltered outdoor environments. For fully outdoor or marine applications requiring IP67 or higher protection, please contact us to discuss sealed versions.
Can the motor direction be reversed?+
Yes. Simply reverse the polarity of the DC supply to reverse the motor direction. For automated direction control, use an H-bridge motor driver or relay circuit.
What is the maximum continuous torque output?+
Maximum torque depends on the selected gear ratio and operating voltage. Please contact us with your ratio selection and load requirements — we will provide the specific torque data for your configuration.
