Product Features
Key design and engineering features of the CC3
✓
Compact form factor with precision gearbox for high torque in minimal space
✓
Wide gear ratio range 1:5 to 1:810 for diverse speed and torque applications
✓
100% pure copper winding for efficient, reliable 12V and 24V operation
✓
Dual voltage 12V / 24V for battery-powered and industrial DC supply compatibility
✓
Low operating noise suitable for office, consumer and laboratory environments
✓
Rated for 24/7 continuous duty in embedded industrial drive applications
Technical Specifications
Full parameter data and dimensional drawings
📋 Performance Parameter Table

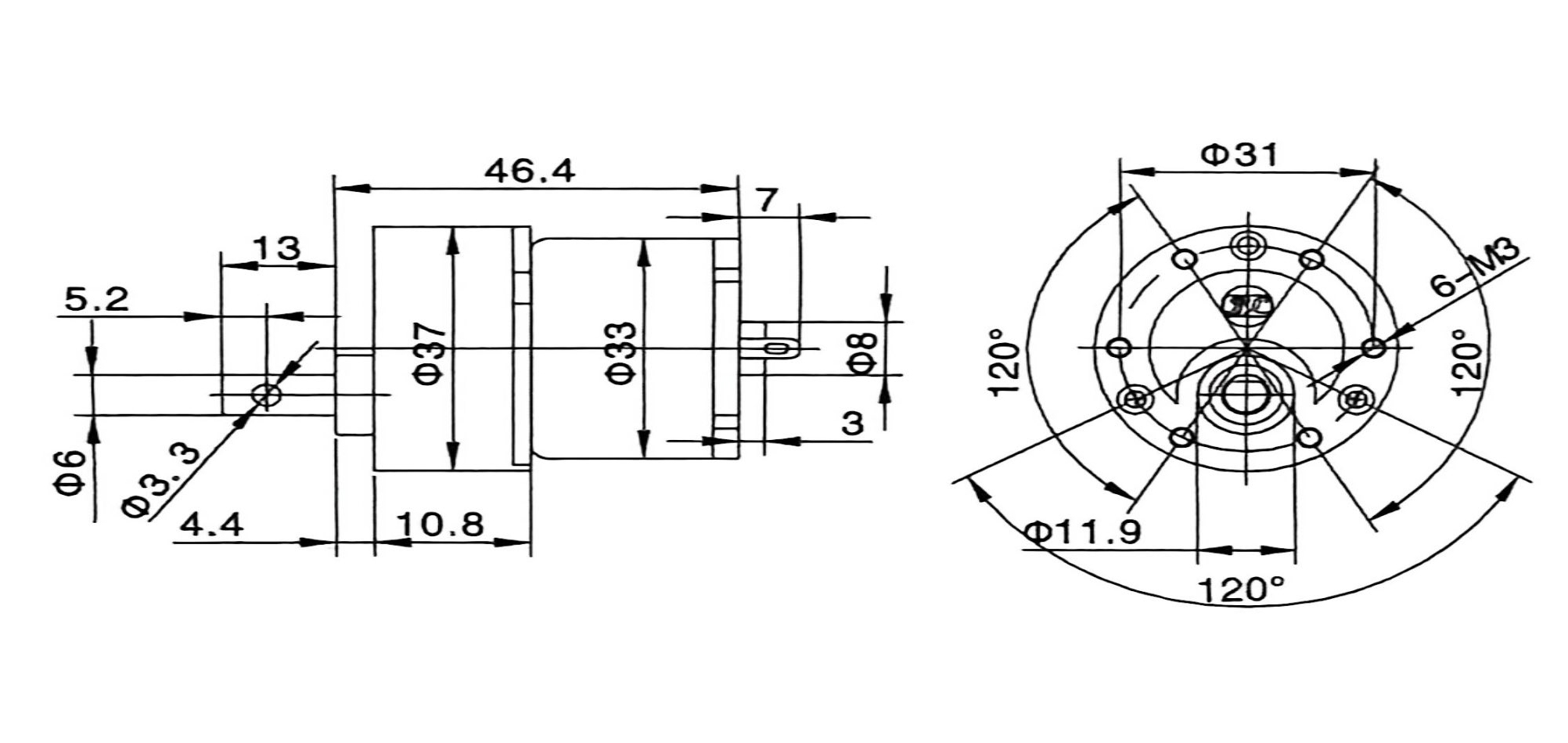

📐 Dimensional Drawing
| Parameter | Specification |
|---|
| Model | CC3 |
| Motor Type | DC Gear Motor |
| Rated Power | See details |
| Supply Voltage | 12V / 24V |
| No-Load Speed | See details |
| Gear Ratio Range | 1:5 – 1:810 |
| Output Shaft Diameter | See details |
| Frame Size | See details |
| Duty Cycle | S1 — Continuous 24/7 |
| Certification | ISO 9001 · CMA · CNAS · ILAC-MRA |
Applications
Typical industries and equipment where the CC3 excels
🤖
Robotics & Automation
Joint actuators and end-effector drives for collaborative robots and automation platforms.
🔐
Access Control
Electronic locks, barrier arms, gate openers and electronic latch mechanisms.
🎮
Interactive Kiosks
Ticket dispensers, card reader mechanisms and interactive display actuators.
🏠
Smart Home Systems
Compact drives for automated blinds, valve actuators and smart appliance mechanisms.
Advantages
Why engineers and buyers choose MENG MOTOR for the CC3
01
Compact design integrates into the tightest mechanical assemblies
02
Wide ratio range eliminates the need for multiple motor variants across different speed needs
03
ISO 9001, CMA, CNAS, ILAC-MRA certified — complete export documentation standard
04
OEM available from MOQ 50 units with custom shaft, ratio and voltage configurations
Frequently Asked Questions
Common questions about the CC3
How does CC3 compare to CC1 and CC2?+
CC1, CC2 and CC3 share the same ratio range and voltage but differ in frame size, shaft specification and gearbox construction to suit different load and space requirements. Contact us with your load data and space constraints for the best model recommendation.
Is a speed controller required to vary the speed?+
No separate controller is required for basic variable speed. Simply vary the supply voltage. For precision PWM speed control, a compatible motor driver is recommended — contact us for compatible driver recommendations.
Can I get this motor with a specific shaft diameter?+
Yes. Custom shaft diameter and length are available for OEM orders from MOQ 50 units. Specify your shaft requirement when enquiring.
Is this motor RoHS compliant?+
Yes. All MENG MOTOR products comply with RoHS directives. Compliance documentation is available upon request for export orders.
