Product Features
Key design and engineering features of the YC-90 ESC
✓
Enhanced ESC with extended speed range and improved response vs standard ESC variant
✓
90W high-power output for the most demanding variable-speed industrial applications
✓
Heavy-duty Φ14mm shaft for maximum load capacity in precision speed-control systems
✓
100% pure copper winding with Class F insulation for 24/7 continuous duty
✓
Supports external analog signal (0–5V / 4–20mA) for PLC integration
✓
Dual voltage 110V/60Hz and 220V/50Hz for global deployment
Technical Specifications
Full parameter data and dimensional drawings

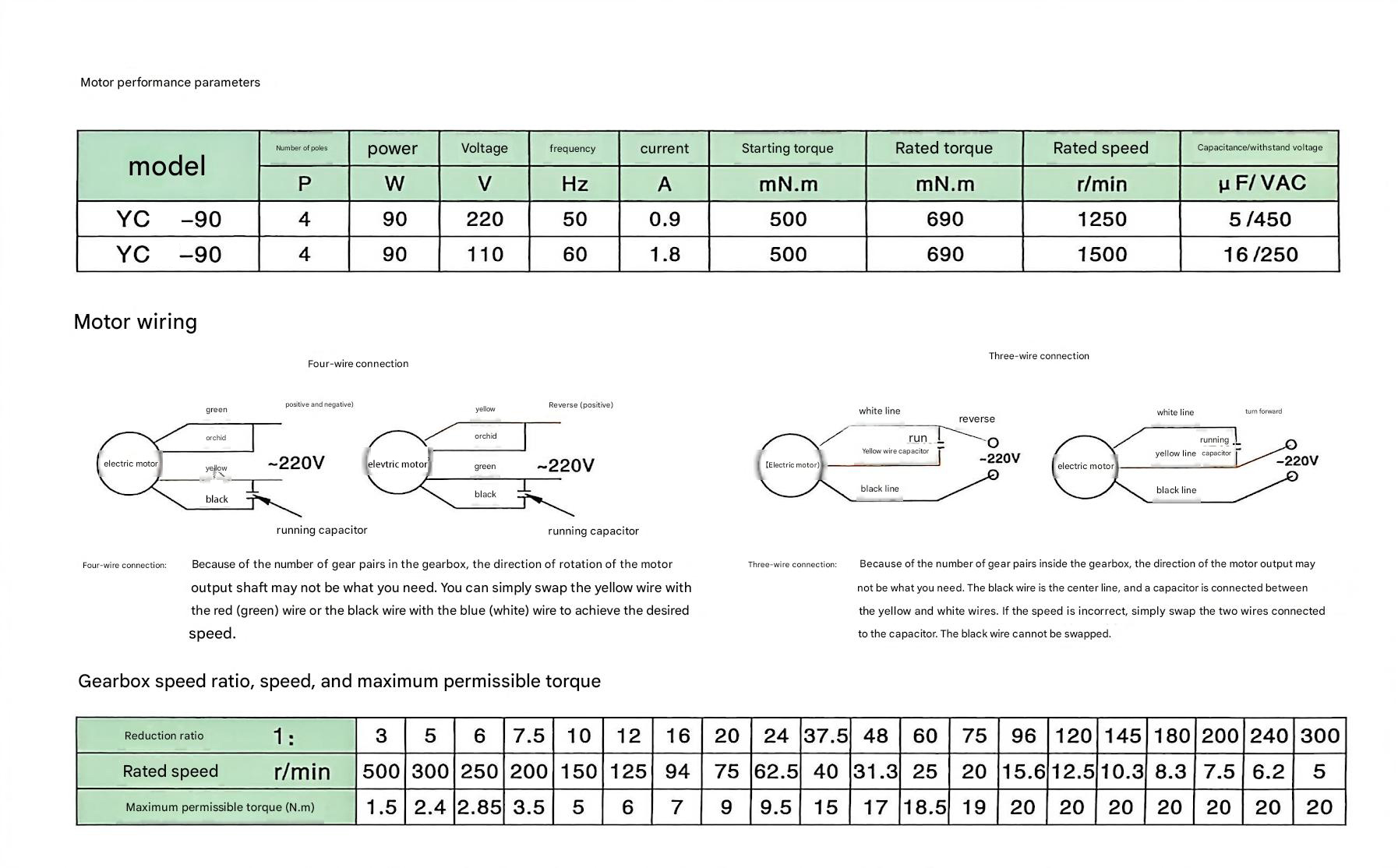

📋 Performance Parameter Table

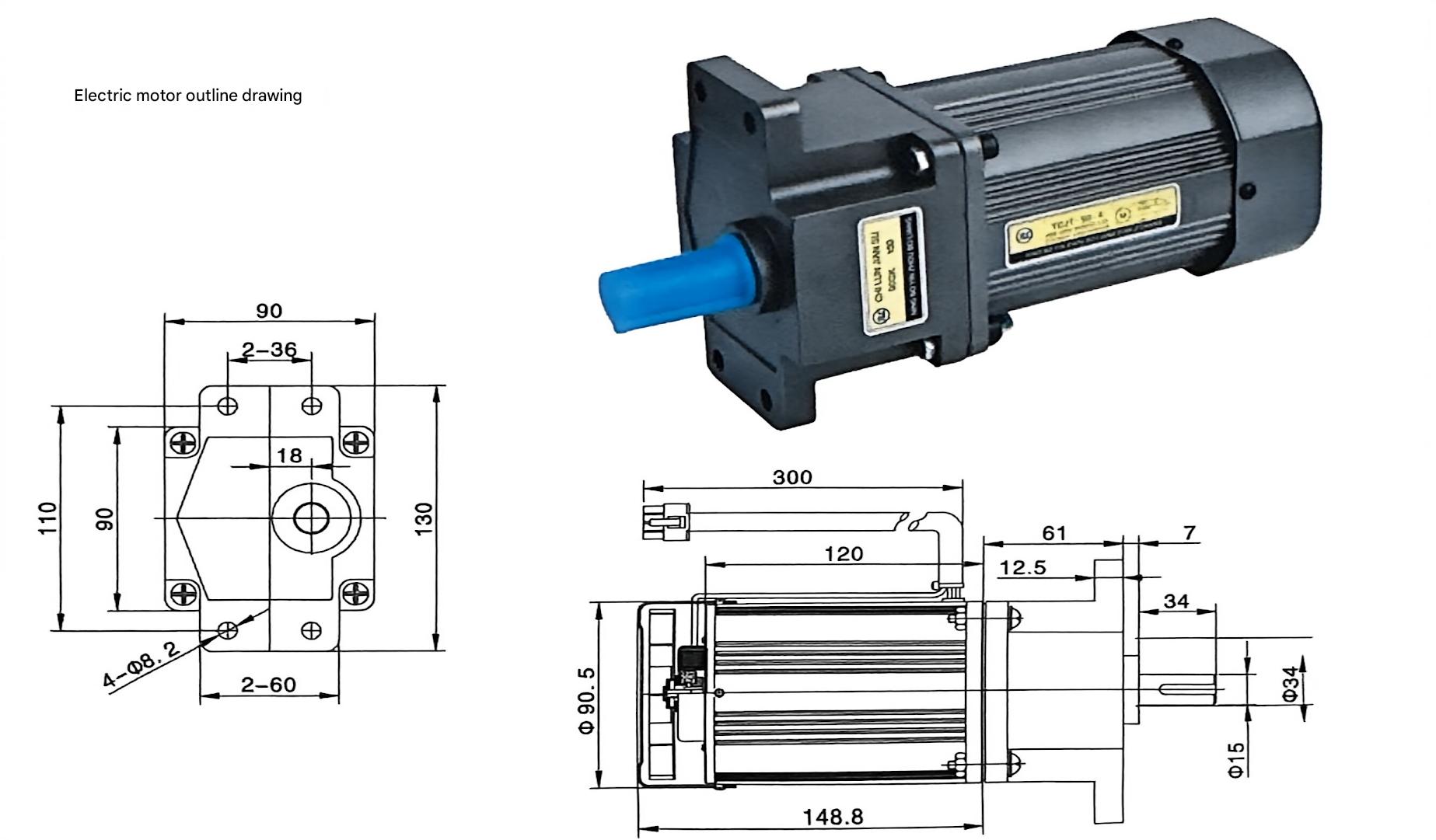

📐 Dimensional Drawing
| Parameter | Specification |
|---|
| Model | YC-90 ESC |
| Motor Type | AC Induction Motor |
| Rated Power | 90W |
| Supply Voltage | 110V / 220V |
| No-Load Speed | 1250 / 1500 r/min |
| Gear Ratio Range | 1:3 – 1:300 |
| Output Shaft Diameter | Φ14mm |
| Frame Size | 90mm Square |
| Insulation Class | Class F (155°C) |
| Duty Cycle | S1 — Continuous 24/7 |
| Certification | ISO 9001 · CMA · CNAS · ILAC-MRA |
Applications
Typical industries and equipment where the YC-90 ESC excels
🤖
Advanced Robotics
Precision joint speed control for industrial robots and collaborative automation platforms.
💊
Pharmaceutical Production
Variable-speed drives for sterile filling, tablet pressing and coating drum systems.
🖨️
Wide-Format Printing
Smooth variable-speed media transport for large-format printers and imaging equipment.
🔬
Semiconductor & Cleanroom
Wafer-handling drives and cleanroom automation requiring precise contamination-free speed control.
Advantages
Why engineers and buyers choose MENG MOTOR for the YC-90 ESC
01
Enhanced ESC controller provides finer speed resolution and faster response than standard ESC
02
90W output handles variable-speed loads beyond the capacity of smaller frame motors
03
ISO 9001, CMA, CNAS, ILAC-MRA certified — complete export documentation standard
04
OEM custom ESC control interface, speed range and branding from MOQ 50 units
Frequently Asked Questions
Common questions about the YC-90 ESC
What makes the Pro ESC different from the standard ESC?+
The Pro variant features an upgraded controller with a wider adjustable speed range, finer speed resolution and faster response time. It also includes an analog input (0–5V or 4–20mA) as standard for direct PLC integration.
Can I control this motor from a PLC or SCADA system?+
Yes. The Pro ESC includes a standard 0–5V analog input and optionally 4–20mA. Connect your PLC analog output directly to the ESC signal input for automated speed control.
What is the minimum stable operating speed?+
The enhanced ESC maintains stable speed control down to approximately 10% of rated speed. For applications requiring very low speed with high torque, please contact us to confirm suitability.
Is the motor suitable for cleanroom environments?+
The standard motor is not fanless — if contamination from fan airflow is a concern, please refer to our YC-90 Bladeless ESC model (motor-06) instead. For semiconductor or pharmaceutical environments, specify your IP and contamination requirements when enquiring.
