Product Features
Key design and engineering features of the ND Series
✓
Ultra-wide gear ratio range 1:15.6 to 1:1400 — widest in the MENG MOTOR product range
✓
Synchronous motor design maintains constant speed regardless of load variation
✓
100% pure copper winding for reliable 24/7 continuous timing and drive applications
✓
Low operating noise — ideal for quiet environments such as laboratories and offices
✓
Dual voltage 110V/60Hz and 220V/50Hz for global precision equipment deployment
✓
Available at 13W and 20W to match application power requirements
Technical Specifications
Full parameter data and dimensional drawings
📋 Performance Parameter Table

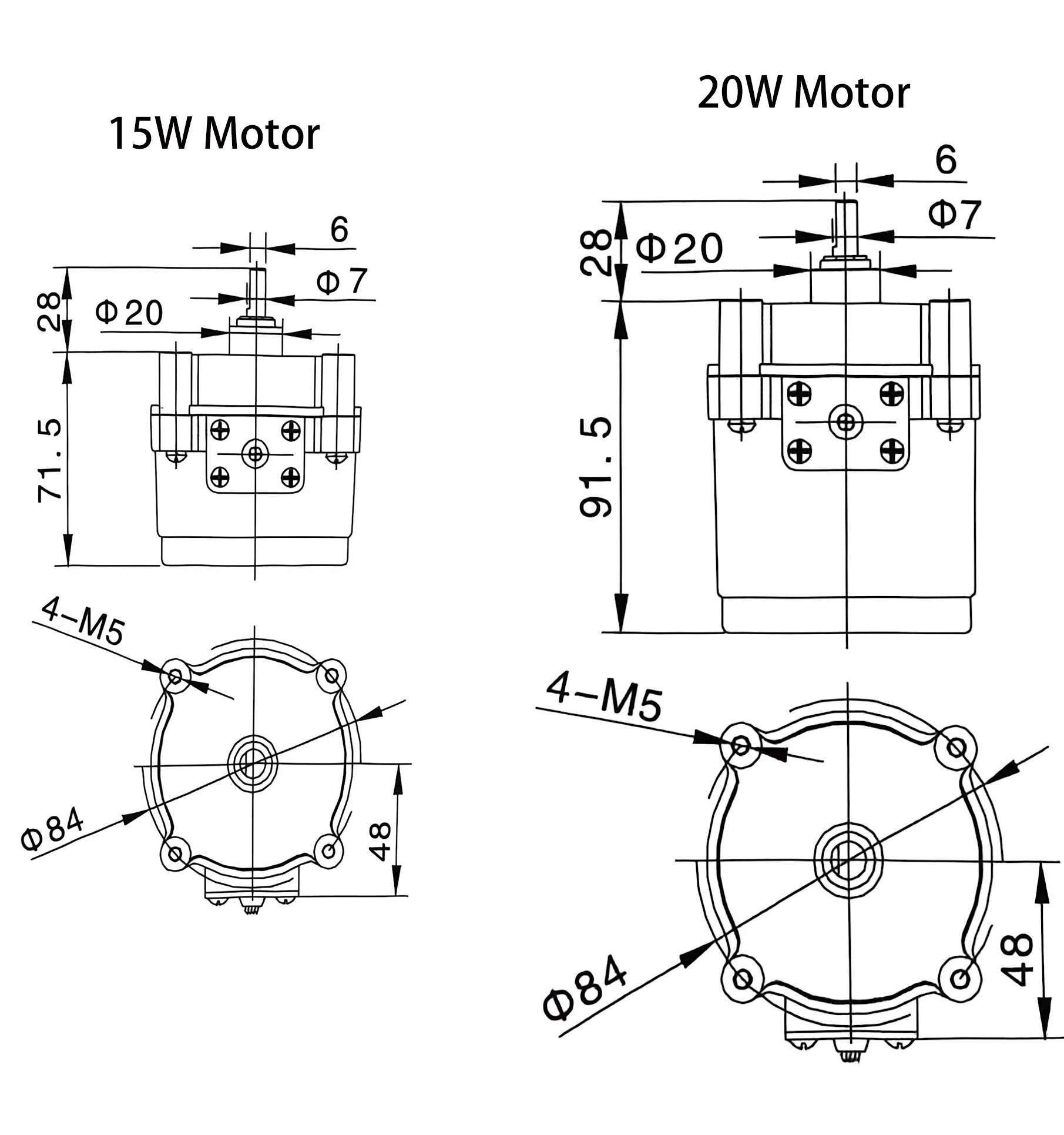

📐 Dimensional Drawing
| Parameter | Specification |
|---|
| Model | ND Series |
| Motor Type | AC Synchronous Motor |
| Rated Power | 13W / 20W |
| Supply Voltage | 110V / 220V |
| No-Load Speed | See details |
| Gear Ratio Range | 1:15.6 – 1:1400 |
| Output Shaft Diameter | See details |
| Frame Size | See details |
| Insulation Class | Class F (155°C) |
| Duty Cycle | S1 — Continuous 24/7 |
| Certification | ISO 9001 · CMA · CNAS · ILAC-MRA |
Applications
Typical industries and equipment where the ND Series excels
⏱️
Industrial Timers & Counters
Precision timing mechanisms for process timers, counters and control panel instruments.
🎛️
Metering & Dosing Equipment
Exact-speed drives for liquid metering pumps, powder dispensers and reagent dosing systems.
💊
Pharmaceutical Equipment
Precise constant-speed drives for tablet presses, blister pack indexers and coating drums.
🔬
Scientific Instruments
Sample rotation stages, filter wheel drives and calibration equipment requiring stable speed.
Advantages
Why engineers and buyers choose MENG MOTOR for the ND Series
01
Ultra-wide ratio range covers virtually every timing and metering speed requirement in one model
02
Synchronous speed is inherently stable — no controller or feedback needed for constant speed
03
ISO 9001, CMA, CNAS, ILAC-MRA certified — complete export documentation included
04
OEM available from MOQ 50 units with custom shaft, ratio and voltage specifications
Frequently Asked Questions
Common questions about the ND Series
What is the advantage of a synchronous motor over an induction motor?+
A synchronous motor maintains constant speed regardless of load — its speed is locked to the supply frequency. An induction motor speed varies slightly with load (slip). For timing and metering applications where speed accuracy is critical, synchronous is the correct choice.
What does the gear ratio range 1:15.6 to 1:1400 mean in practice?+
At a 1:1400 ratio with a 1500 r/min motor, output speed is approximately 1 r/min. At 1:15.6 it is around 100 r/min. This ultra-wide range means a single motor family covers timing speeds from very slow (1 RPM) to moderate (100 RPM).
Can the ND Series motor reverse direction?+
Direction reversal requires wiring changes. Please refer to the wiring diagram provided with the motor, or contact us for guidance on your specific configuration.
Is this motor suitable for 24/7 continuous operation?+
Yes. With pure copper winding and Class F insulation, the ND Series is rated for S1 continuous duty. It is commonly deployed in 24/7 timing and metering applications.
