Product Features
Key design and engineering features of the 555ZY
✓
Defined gear ratio range 1:36 to 1:260 for predictable low-speed high-torque output
✓
Dual voltage 6V / 24V for battery-powered and industrial DC supply systems
✓
555-class motor body for compatibility with standard 555 motor mounting formats
✓
100% pure copper winding for efficient, reliable low-voltage operation
✓
Low operating noise suitable for consumer and light industrial environments
✓
Rated for 24/7 continuous duty in embedded geared drive applications
Technical Specifications
Full parameter data and dimensional drawings
📋 Performance Parameter Table

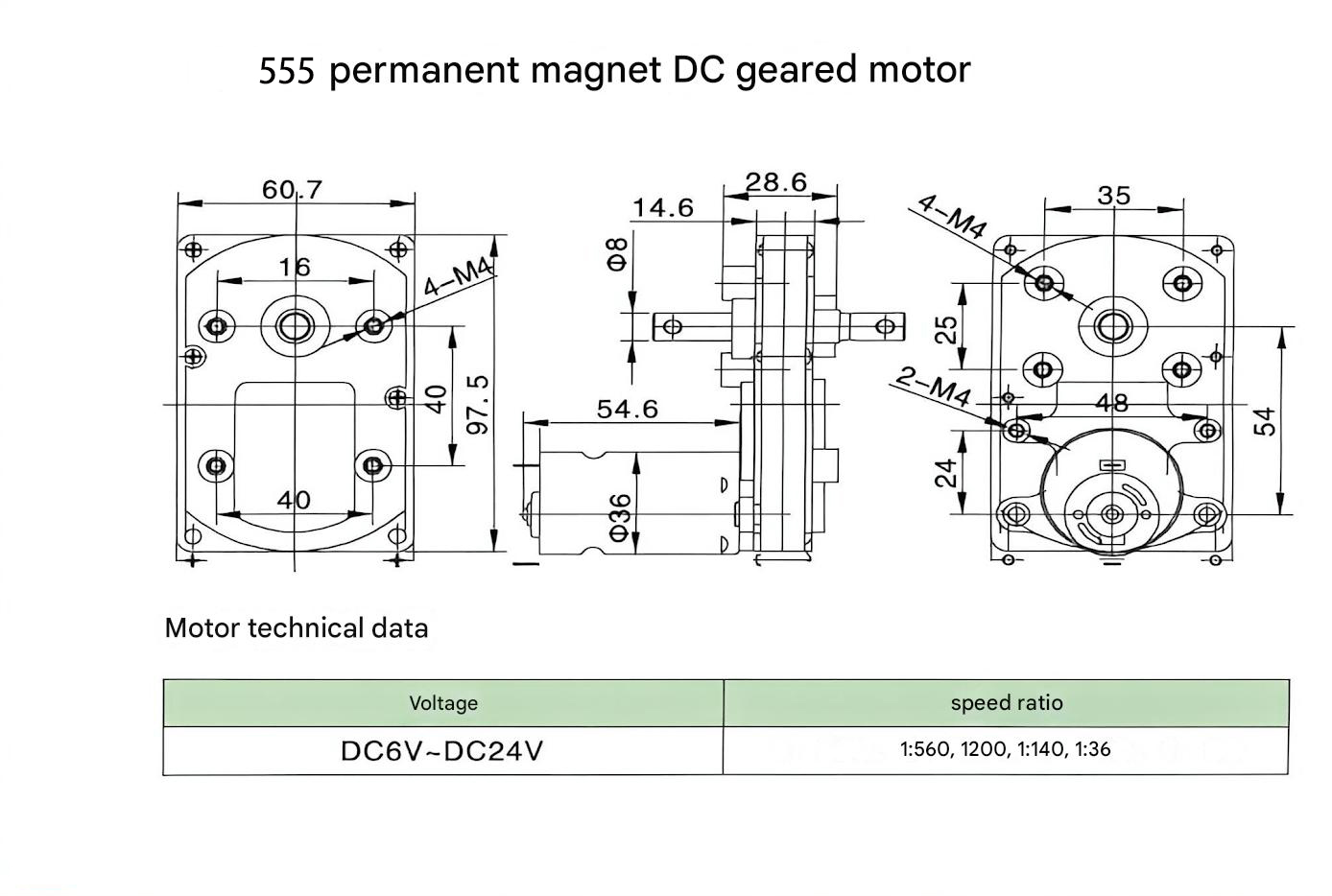

📐 Dimensional Drawing
| Parameter | Specification |
|---|
| Model | 555ZY |
| Motor Type | DC Gear Motor |
| Rated Power | See details |
| Supply Voltage | 6V / 24V |
| No-Load Speed | See details |
| Gear Ratio Range | 1:36 – 1:260 |
| Output Shaft Diameter | See details |
| Frame Size | See details |
| Duty Cycle | S1 — Continuous 24/7 |
| Certification | ISO 9001 · CMA · CNAS · ILAC-MRA |
Applications
Typical industries and equipment where the 555ZY excels
🌱
Agricultural Automation
Irrigation valve drives, automated seeder actuators and greenhouse equipment drives.
🏭
Light Industrial OEM
Custom OEM compact geared drives for specialised machinery requiring reliable low-voltage output.
🌊
Marine & Outdoor Equipment
Waterproof-ready actuation for marine winches, solar trackers and outdoor gate mechanisms.
💡
Building Automation
HVAC damper drives, automated lighting controls and building management actuators.
Advantages
Why engineers and buyers choose MENG MOTOR for the 555ZY
01
Defined ratio range simplifies selection versus open-ratio alternatives
02
555-class compatibility allows drop-in replacement in existing 555 motor designs
03
ISO 9001, CMA, CNAS, ILAC-MRA certified — complete export documentation standard
04
OEM available from MOQ 50 units with custom ratio, shaft and voltage options
Frequently Asked Questions
Common questions about the 555ZY
What does 555ZY mean?+
The '555' refers to the motor can size class, and 'ZY' indicates a permanent magnet DC motor. The 555 class is larger than the 370 class, providing higher power output.
What output speeds are achievable with the 1:36–1:260 ratio range?+
At 24V with a no-load speed of approximately 6000 r/min, a 1:36 ratio gives approximately 167 r/min output and a 1:260 ratio gives approximately 23 r/min. Contact us with your exact speed requirement for the correct ratio selection.
Can I use this motor with a PWM speed controller?+
Yes. Permanent magnet DC motors work well with PWM controllers. Ensure the controller is rated for the motor's current draw at your chosen voltage.
Is a higher ratio version available?+
The standard range is 1:36 to 1:260. For lower output speeds, contact us — we can advise on extended ratio options or alternative models with wider ratio ranges.
