Product Features
Key design and engineering features of the 38ZY
✓
Triple voltage support: 6V, 12V and 24V — maximum flexibility for different system voltages
✓
Gear ratio range 1:30 to 1:428 for diverse low-speed positioning and drive requirements
✓
Type C compact body profile optimised for embedded product integration
✓
100% pure copper winding for efficient high-torque output at all voltages
✓
Low operating noise suitable for consumer, medical and laboratory environments
✓
Rated for 24/7 continuous duty in embedded industrial and consumer applications
Technical Specifications
Full parameter data and dimensional drawings
📋 Performance Parameter Table

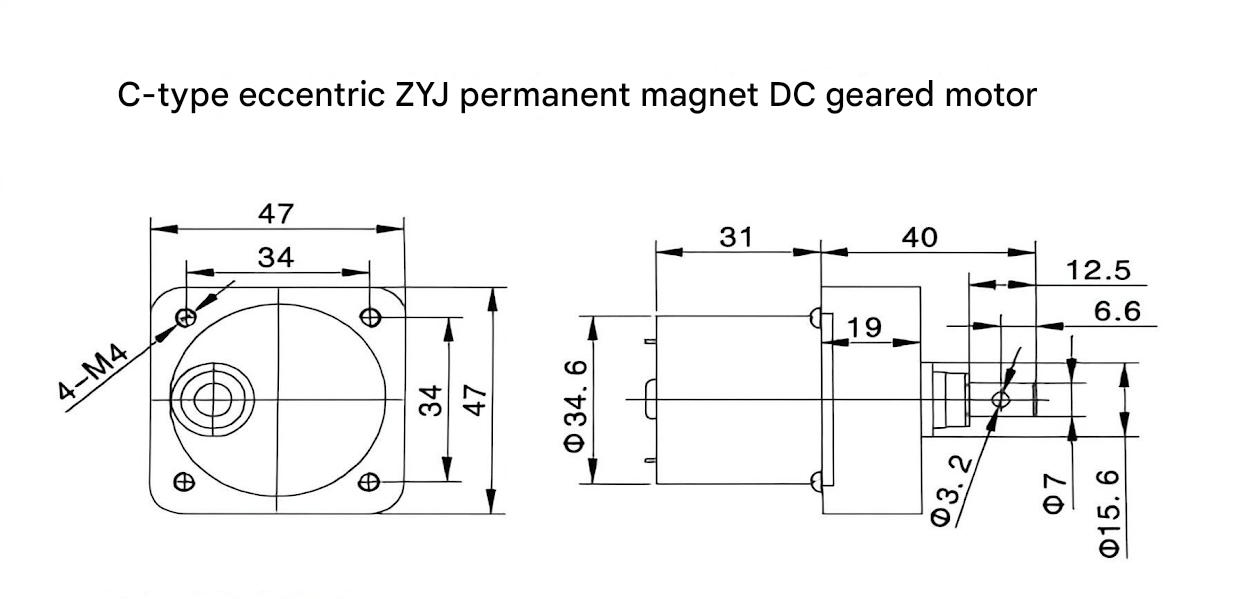

📐 Dimensional Drawing
| Parameter | Specification |
|---|
| Model | 38ZY |
| Motor Type | DC Gear Motor |
| Rated Power | See details |
| Supply Voltage | 6V / 12V / 24V |
| No-Load Speed | See details |
| Gear Ratio Range | 1:30 – 1:428 |
| Output Shaft Diameter | See details |
| Frame Size | See details |
| Duty Cycle | S1 — Continuous 24/7 |
| Certification | ISO 9001 · CMA · CNAS · ILAC-MRA |
Applications
Typical industries and equipment where the 38ZY excels
🤖
Mobile & Service Robotics
Joint actuators and drive wheels for service robots, AGVs and autonomous mobile platforms.
🏠
Smart Home Automation
Automated blind motors, smart valve actuators, curtain drives and home appliance mechanisms.
🎮
Interactive Systems
Exhibit motors, interactive kiosk drives and themed attraction mechanism actuators.
🔬
Scientific & Laboratory
Sample handling drives, rotating stage motors and low-power precision positioning instruments.
Advantages
Why engineers and buyers choose MENG MOTOR for the 38ZY
01
Triple voltage support covers battery, automotive and industrial DC systems in one model
02
Type C profile enables integration into products where standard round motors do not fit
03
ISO 9001, CMA, CNAS, ILAC-MRA certified — complete export documentation standard
04
OEM available from MOQ 50 units with custom voltage, ratio and shaft options
Frequently Asked Questions
Common questions about the 38ZY
What does Type C mean?+
Type C refers to the motor's body profile — a compact, slightly rectangular cross-section optimised for product integration where standard round motor profiles do not fit the available space.
Can I use all three voltages interchangeably?+
The motor is designed to operate at any of the three rated voltages. Speed and torque vary with voltage — 6V gives the lowest speed and torque, 24V the highest. Select the voltage matching your system for rated performance.
What is the output speed at a 1:30 ratio with 12V supply?+
Output speed depends on the motor's no-load speed at 12V. Contact us with your voltage and ratio selection and we will provide the expected output speed and torque data.
Is a brushless version available?+
The standard 38ZY uses brushed DC technology. For brushless versions with longer brush life and electronic commutation, please contact us to discuss available options.
