Worm Gear Reducer
NMRW Worm Gear Reducer — Frame 030–150
Reduction Ratio 5:1 – 100:1 · Aluminum Alloy Housing · Input Flange Mount
The NMRW worm gear reducer is a right-angle worm drive gearbox designed to mount directly onto the output shaft of a standard AC motor via its input flange, delivering high reduction ratios and self-locking output in a compact aluminum alloy housing. Available across 9 frame sizes (030–150) with reduction ratios from 5:1 to 100:1, the NMRW is suited for both light-duty instrumentation and heavier industrial transmission tasks. Output configurations include single shaft, double shaft, and flange-output variants to match a wide range of mounting requirements.
Reduction Ratio5:1 – 100:1
Frame Size Range030 – 150
Housing MaterialAluminum Alloy
Input MountMotor Input Flange
Output OptionsSingle / Double Shaft
Mounting PositionB3, B6, B7, B8, V5, V6
Product Features
Key design and engineering features of the NMRW worm gear reducer
✓
Self-locking worm gear design holds position under load without a brake or backstop
✓
Precision-machined hardened worm shaft paired with bronze alloy worm wheel for long service life
✓
Lightweight aluminum alloy housing resists corrosion and dissipates heat efficiently
✓
Input flange mounts directly to standard motor frames — no separate coupling required
✓
9 frame sizes (030–150) and 12 ratio options (5:1–100:1) cover light to heavy-duty loads
✓
Multiple mounting orientations (B3, B6, B7, B8, V5, V6) for flexible installation
Technical Specifications
Full parameter data and dimensional drawings

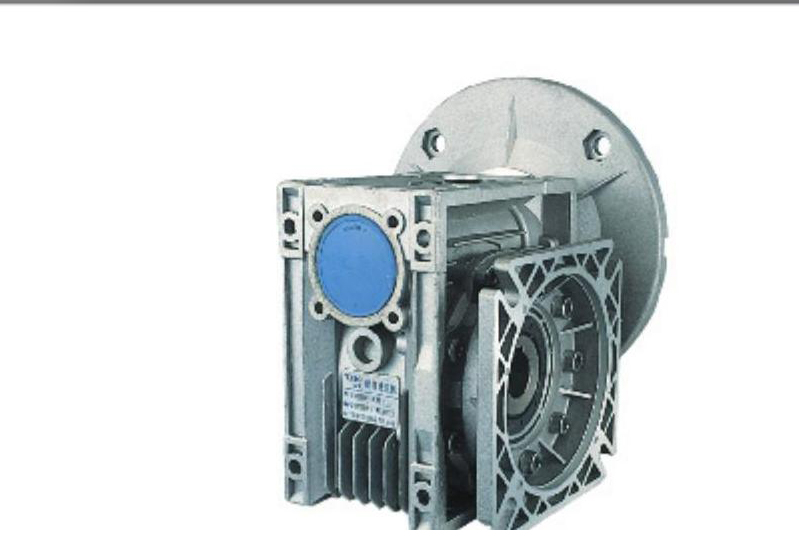

⚙ Input Flange (F1) Configuration

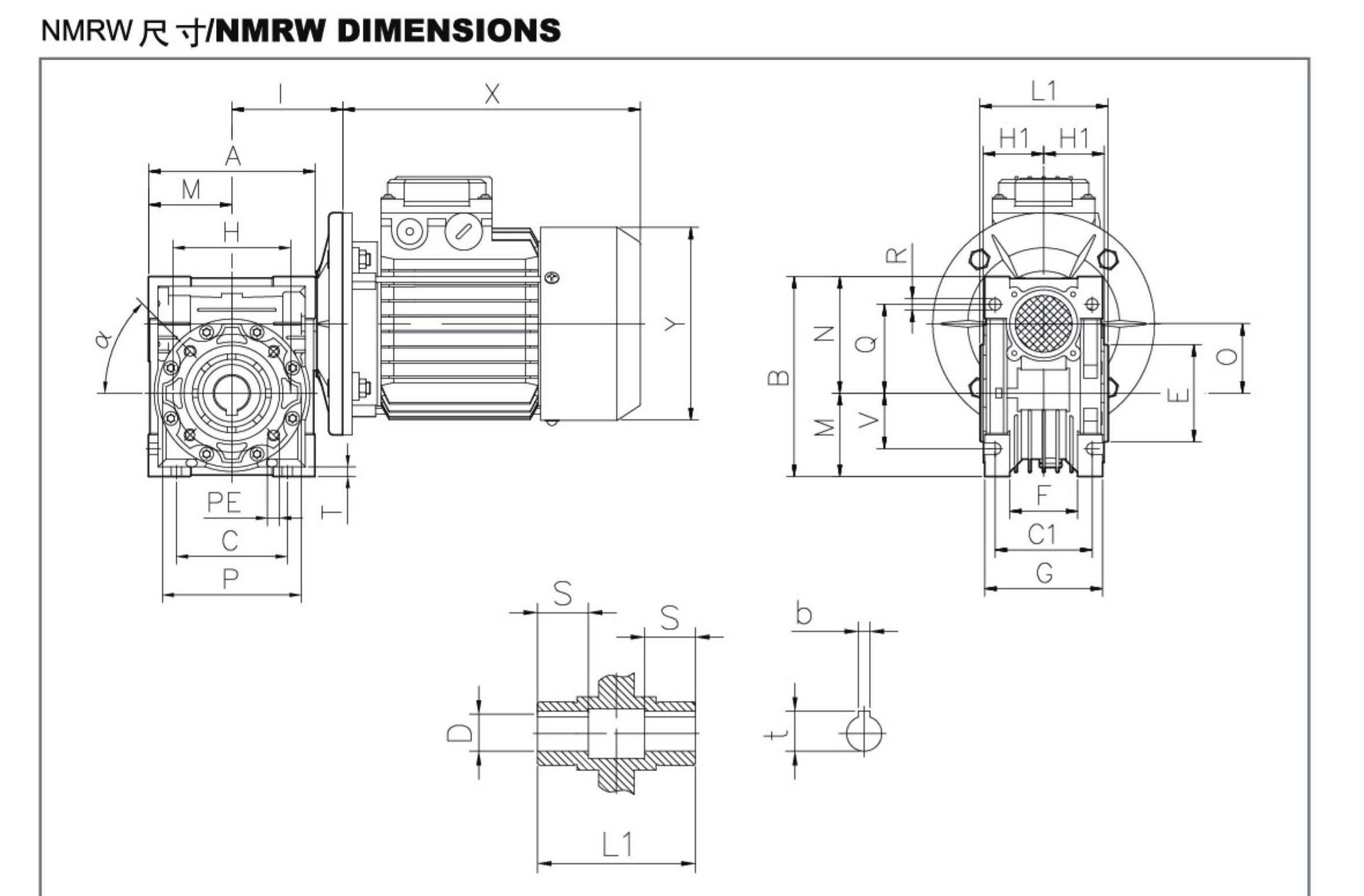

📐 Dimensional Drawing
| Parameter | Specification |
|---|
| Series | NMRW (Worm Reducer with Input Flange) |
| Reducer Type | Right-Angle Worm Gear Reducer |
| Frame Size Range | 030, 040, 050, 063, 075, 090, 110, 130, 150 |
| Reduction Ratio | 5, 7.5, 10, 15, 20, 25, 30, 40, 50, 60, 80, 100 : 1 |
| Housing Material | Die-Cast Aluminum Alloy |
| Worm Wheel Material | Bronze Alloy |
| Output Shaft Options | Single Output (SS), Double Output (DS), Output Flange (F) |
| Torque Arm Option | Available (A configuration) |
| Mounting Positions | B3, B6, B7, B8 (horizontal) / V5, V6 (vertical) |
| Lubrication | Splash lubrication, VG32-grade gear oil recommended |
| Compatible Motor Mount | × × B5, × × B14 (per frame size) |
Frame Size & Dimension Table
All dimensions in mm. Values shown for the standard input-flange (F1) configuration.
| Model | A | B | C (Motor Flange) | D (Output Shaft ⌀) | E (Shaft Length) | F (Base Width) | H (Mount Height) |
|---|
| NMRW030 | 80 | 97 | 54 | 14 | 55 | 32 | 56 |
| NMRW040 | 100 | 121.5 | 70 | 19 | 60 | 43 | 71 |
| NMRW050 | 120 | 144 | 80 | 24 | 70 | 49 | 85 |
| NMRW063 | 144 | 174 | 100 | 28 | 80 | 67 | 103 |
| NMRW075 | 172 | 205 | 120 | 35 | 95 | 72 | 112 |
| NMRW090 | 206 | 238 | 140 | 38 | 110 | 74 | 130 |
| NMRW110 | 255 | 295 | 170 | 42 | 130 | — | 144 |
| NMRW130 | 293 | 335 | 200 | 45 | 180 | — | 155 |
| NMRW150 | 340 | 400 | 240 | 50 | 180 | — | 185 |
* Exact dimensions may vary slightly by production batch — please confirm critical dimensions with our sales team before finalizing your design.
Applications
Typical industries and equipment where the NMRW worm gear reducer excels
🏭
Conveyor & Material Handling
Belt conveyors, roller conveyors and bucket elevators requiring high torque at low output speed.
📦
Packaging Machinery
Filling, capping, labeling and wrapping machines needing compact, self-locking speed reduction.
🌀
Mixing & Agitation Equipment
Chemical mixers, food-grade agitators and stirring equipment requiring steady low-speed torque.
🚪
Valve & Damper Actuation
Industrial valve actuators, dampers and gate controls that benefit from self-locking output holding.
Advantages
Why engineers and buyers choose CoreMotor Tech for the NMRW worm gear reducer
01
Flexible order quantities and competitive wholesale pricing — OEM/ODM bulk pricing available
02
Export documentation and shipping coordination provided
03
9 frame sizes and 12 ratio options available — lead time confirmed on quotation
04
English-speaking sales and technical support via WhatsApp
Frequently Asked Questions
Common questions about the NMRW worm gear reducer
Does the NMRW reducer come with a motor, or do I need to buy one separately?+
The NMRW is supplied as a gearbox only, designed to mount directly onto the input flange of a standard AC motor. We can also supply a matched motor + reducer set — let us know your required output speed and torque and we will recommend the correct motor frame size.
What does "self-locking" mean and do all ratios support it?+
Self-locking means the output shaft resists being back-driven by an external load, holding its position without a separate brake. Most NMRW ratios (typically 30:1 and above) are self-locking; lower ratios may allow some back-drive under heavy load. Tell us your ratio and load requirement and we'll confirm.
What is the difference between single output (SS), double output (DS) and flange output (F)?+
SS provides a single output shaft on one side. DS extends the output shaft through both sides of the housing, useful for driving two mechanisms simultaneously. F replaces the shaft with a flat output flange for direct flange-to-flange mounting to your equipment.
Is OEM/custom specification available?+
Yes. We support custom output shaft configuration, torque arm fitting, mounting position and branding with flexible MOQ. Contact us via WhatsApp for OEM pricing.
