Parallel Shaft Helical Reducer
FC Parallel Shaft Helical Geared Reducer
Motor Power 0.12 – 200 kW · Hardened Helical Gearing · Foot / Flange / Hollow-Shaft Mount
The FC parallel shaft helical geared reducer transmits power through an inline, axially-parallel gear train, giving a compact footprint compared to right-angle designs. Its hardened, precision-ground helical gears deliver high efficiency and smooth, low-noise running under heavy continuous load. Available across 11 frame sizes (27–157) with motor power from 0.12kW up to 200kW, the FC series is supplied with a solid output shaft or a space-saving hollow shaft (with optional shrink-disk clamping), in foot-mounted, flange-mounted or shaft-mounted configurations. A second-stage combination (FC..RC) extends the ratio range further for very low-speed, high-torque needs.
Motor Power Range0.12 – 200 kW
Gear Material20CrMnTi, HRC58-62
Mount TypeFoot / Flange / Hollow Shaft
Output ShaftSolid or Hollow + Shrink Disk
Product Features
Key design and engineering features of the FC parallel shaft helical geared reducer
✓
Compact inline parallel-shaft layout saves installation length versus right-angle gearboxes
✓
Carburized & nitrided 20CrMnTi gear teeth (HRC58-62), precision ground for stable, quiet running
✓
Hollow shaft with shrink-disk option mounts directly onto driven equipment shaft — no coupling needed
✓
11 frame sizes (27–157) covering light instrumentation through heavy industrial drives
✓
FC..RC combination adds a second reduction stage for extra-low output speed
✓
High-strength cast iron housing, corrosion-resistant surface finish
Technical Specifications
Full parameter data and configuration options

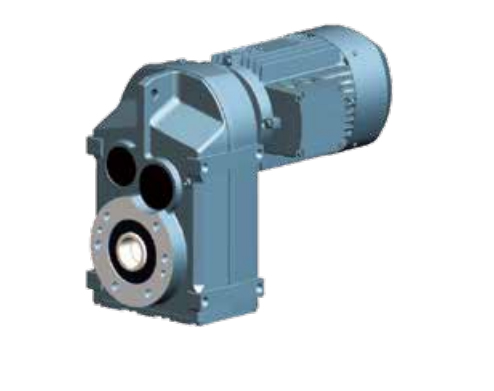

⚙ FC Foot-Mounted Configuration

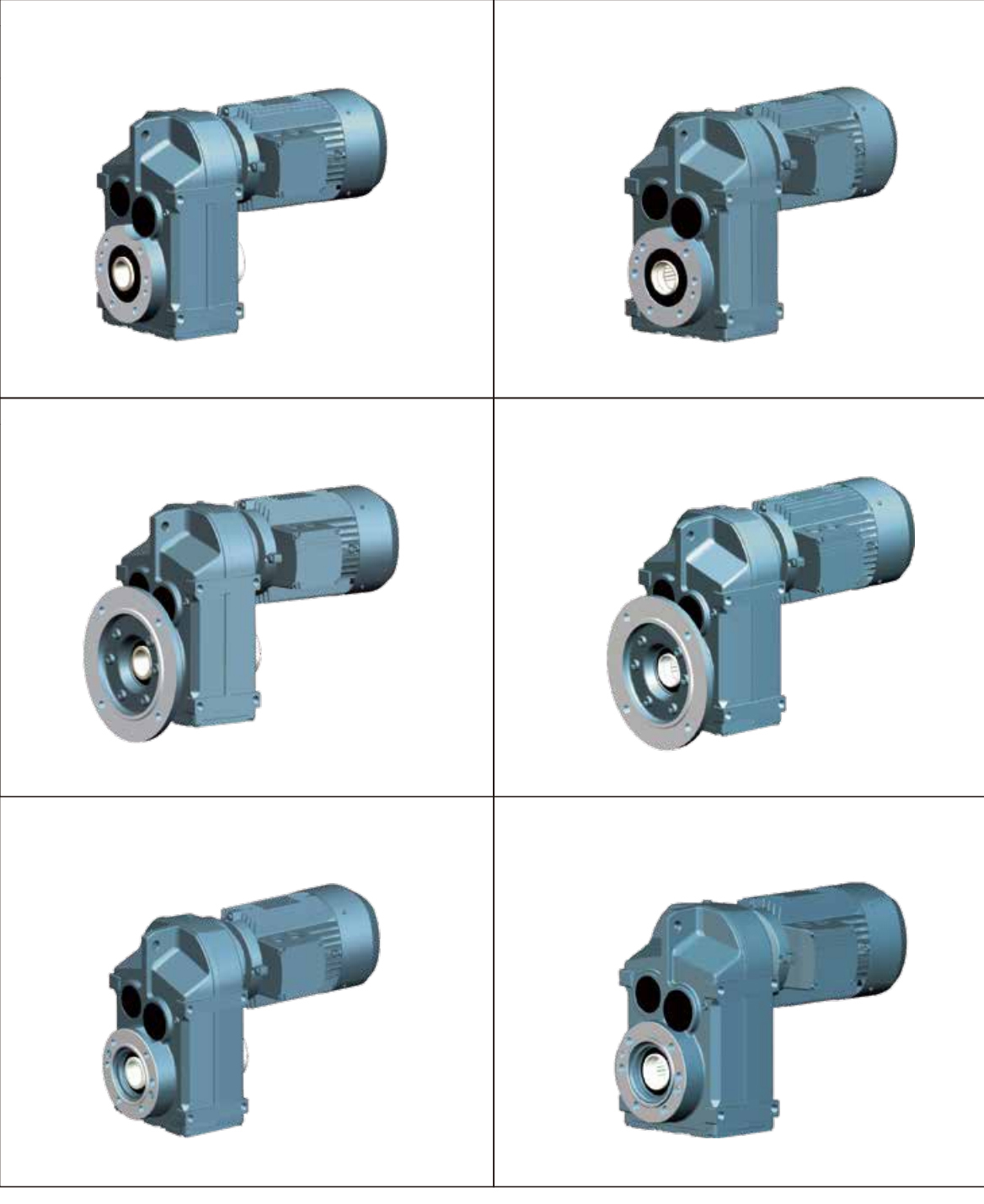

📐 Parts Diagram
| Parameter | Specification |
|---|
| Series | FC (Foot-Mounted) / FCF (Flange-Mounted) / FCH, FCV (Hollow Shaft) / FC..RC (Combination) |
| Reducer Type | Parallel Shaft Helical Geared Reducer |
| Frame Size Range | 27, 37, 47, 57, 67, 77, 87, 97, 107, 127, 157 |
| Motor Power Range | 0.12 kW – 200 kW |
| Motor Poles | 2P, 4P, 6P, 8P |
| Housing Material | High-Strength Cast Iron |
| Gear Material | 20CrMnTi steel, carburized & nitrided, tooth hardness HRC58-62 |
| Output Shaft Options | Solid Shaft, Hollow Shaft, Hollow Shaft + Shrink Disk, Splined Hollow Shaft |
| Mounting Positions | M1 – M6 |
| Terminal Box Position | R (0°), B (90°), L (180°), T (270°) |
* Full dimensional drawings (mounting hole layout, shaft diameter, center height per frame size) are available on request — this series has a large number of frame/configuration combinations, so we prepare the exact drawing for your specific frame size and mounting type to guarantee accuracy.
