Helical-Bevel Geared Reducer
KC Helical-Spiral Bevel Geared Reducer
Right-Angle Output via Spiral Bevel Gear Stage · Heavy-Duty Industrial Reducer
The KC helical-spiral bevel geared reducer combines a hardened helical input stage with a spiral bevel gear output stage, delivering smooth, quiet right-angle power transmission for demanding industrial drives. Its heavier frame construction (up to size 167/187 in combination) and motor power range of 0.12–200kW make it suited to continuous heavy-duty operation. Supplied with solid or hollow output shaft (with shrink-disk clamping option), in foot or flange mounted configurations, with a KC..RC combination available for extra-low output speeds.
Motor Power Range0.12 – 200 kW
Frame Size RangeUp to 167 / 187 (combination)
Gear ConfigurationHelical + Spiral Bevel
Output DirectionRight-Angle
Output ShaftSolid or Hollow + Shrink Disk
Product Features
Key design and engineering features of the KC helical-spiral bevel geared reducer
✓
Spiral bevel output gear stage gives smooth, quiet right-angle power transmission under heavy load
✓
Hardened helical input stage combined with precision spiral bevel gearing for high load capacity
✓
Motor power range up to 200kW supports heavy industrial continuous-duty applications
✓
Hollow shaft with shrink-disk option available for direct, coupling-free installation
✓
KC..RC combination extends the ratio range for extra-low output speed requirements
✓
High-strength cast iron housing built for continuous heavy-duty operation
Technical Specifications
Full parameter data and configuration options

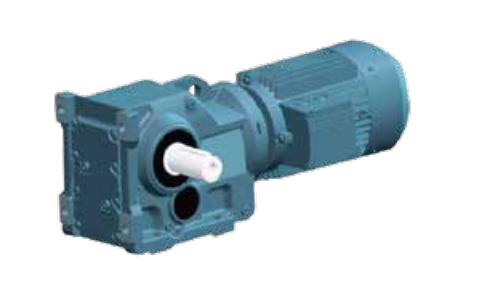

⚙ KC Hollow Shaft Configuration

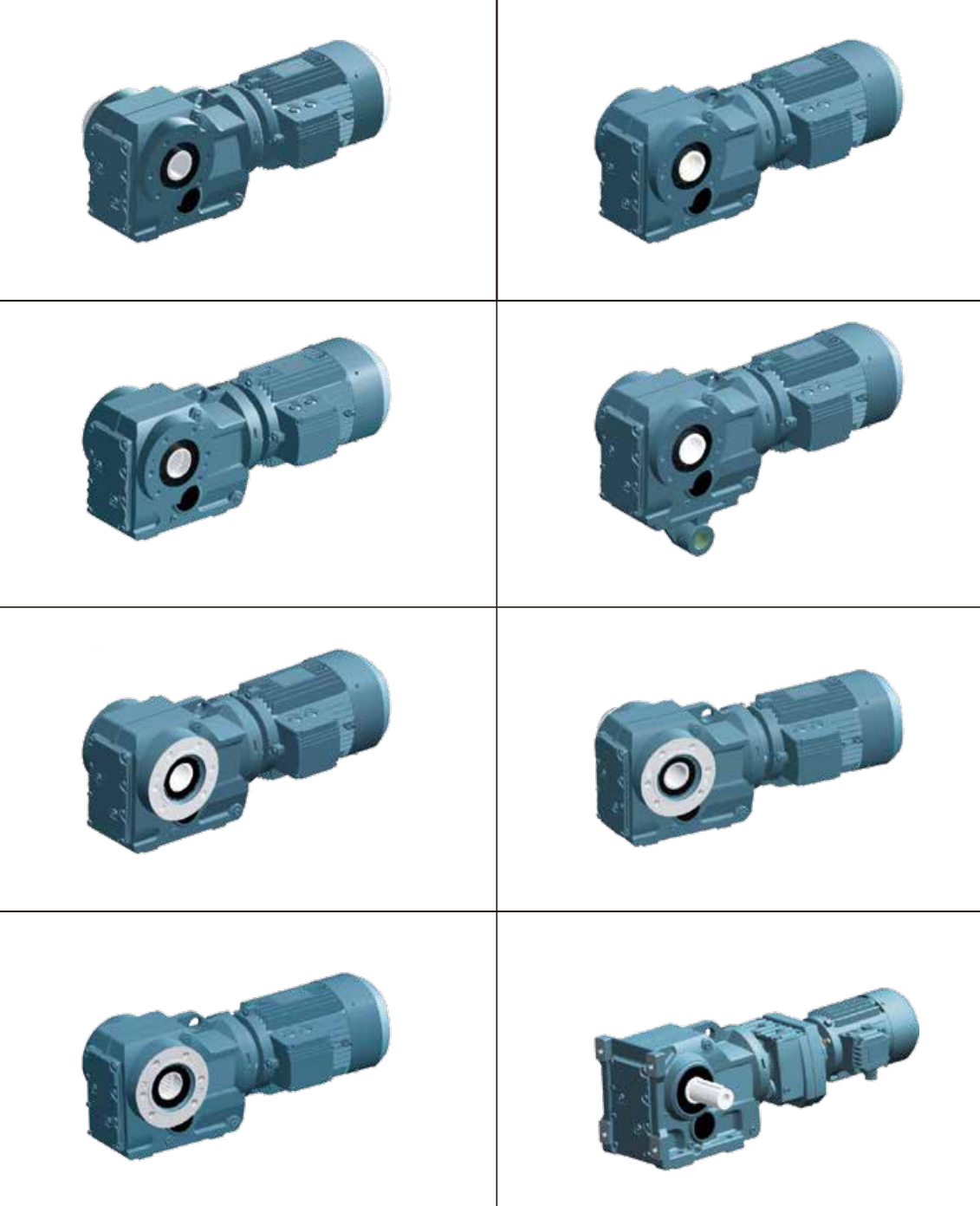

📐 Parts Diagram
| Parameter | Specification |
|---|
| Series | KCF (Flange) / KCAZ, KCHZ, KCVZ (Hollow Shaft) / KC..RC (Combination) |
| Reducer Type | Helical-Spiral Bevel Geared Reducer (Right-Angle, 2-Stage) |
| Frame Size Range | Standard frames up to 167, combination (KC..RC) frames up to 187/107 |
| Motor Power Range | 0.12 kW – 200 kW |
| Motor Poles | 2P, 4P, 6P, 8P |
| Housing Material | High-Strength Cast Iron |
| Gear Material | Hardened helical + spiral bevel gear stages |
| Output Shaft Options | Solid Shaft, Hollow Shaft, Hollow Shaft + Shrink Disk, Splined Hollow Shaft |
| Mounting Positions | M1 – M6 |
| Terminal Box Position | R (0°), B (90°), L (180°), T (270°) |
* Full dimensional drawings (mounting hole layout, shaft diameter, center height per frame size) are available on request — this series has a large number of frame/configuration combinations, so we prepare the exact drawing for your specific frame size and mounting type to guarantee accuracy.
Applications
Typical industries and equipment where the KC helical-spiral bevel geared reducer excels
⛏️
Mining & Steel Processing
Rolling mills, ore crushers and heavy material processing lines requiring robust right-angle drives.
🏭
Cement & Bulk Material Plants
Cement kilns, rotary dryers and large-scale bulk handling equipment under continuous heavy load.
🌬️
Large Fans & Blowers
Industrial ventilation fans and blowers needing smooth, quiet right-angle power transmission.
🏗️
Heavy Lifting & Hoisting
Cranes, hoists and winch systems requiring high load capacity and reliable continuous-duty operation.
Advantages
Why engineers and buyers choose CoreMotor Tech for the KC helical-spiral bevel geared reducer
01
Flexible order quantities and competitive wholesale pricing — OEM/ODM bulk pricing available
02
Export documentation and shipping coordination provided
03
Heavy-duty frame range and KC..RC combination cover extreme torque and ratio needs
04
English-speaking sales and technical support via WhatsApp
Frequently Asked Questions
Common questions about the KC helical-spiral bevel geared reducer
How is KC different from RC?+
RC is a pure helical gearbox with a right-angle output via a helical gear pair. KC uses a spiral bevel gear stage for its right-angle output, which is generally chosen for heavier, larger-frame industrial applications requiring very smooth, quiet running under continuous heavy load. Tell us your torque and speed requirement and we'll recommend the right series.
What frame sizes and power range does KC cover?+
Standard KC frames go up to size 167, and the KC..RC combination (adding a helical pre-stage) extends coverage to frame combinations like 187/107 for higher ratios. Motor power spans 0.12kW to 200kW, covering light industrial through heavy continuous-duty drives.
What output shaft options are available?+
KC is available with a solid output shaft, a hollow shaft, or a hollow shaft with shrink-disk clamping for direct, coupling-free mounting onto your driven equipment shaft.
Is OEM/custom specification available?+
Yes. We support custom shaft configuration, mounting position, terminal box orientation and branding with flexible MOQ. Contact us via WhatsApp for OEM pricing and exact dimensional drawings for your frame size.
