Precision Planetary Gearbox
MB/MBR High-Precision Planetary Gearbox — Frame 042–220
Output Torque 14 – 2000 Nm · Backlash ≤1 – 9 arcmin · For Servo Motor Applications
The MB/MBR series is a high-precision planetary gearbox designed to mount directly onto a servo motor, delivering low backlash and high torsional rigidity for CNC machinery, robotics and automated positioning equipment. MB is the standard inline configuration; MBR extends the reduction ratio range further for applications needing extra-low output speed. Available across 7 frame sizes (042–220mm) with rated output torque from 14Nm to 2000Nm, backlash grades down to ≤1 arcmin, and efficiency up to 97% per stage. Maintenance-free synthetic grease lubrication and an IP65-rated housing support continuous-duty operation in industrial environments.
Output Torque14 – 2000 Nm
Frame Size Range042 – 220 mm
EfficiencyUp to 97% / stage
Product Features
Key design and engineering features of the MB/MBR precision planetary gearbox
✓
Low backlash down to ≤1 arcmin (P0 grade) for precise, repeatable positioning
✓
High torsional rigidity and radial/axial load capacity for direct servo motor mounting
✓
Up to 97% efficiency per stage — minimal energy loss in the drive train
✓
7 frame sizes (042–220mm) covering output torque from 14Nm to 2000Nm
✓
Maintenance-free synthetic grease lubrication, rated for 20,000 hours service life
✓
IP65-rated housing, mountable in any orientation, operating range -10°C to 90°C
Technical Specifications
Full parameter data and dimensional reference

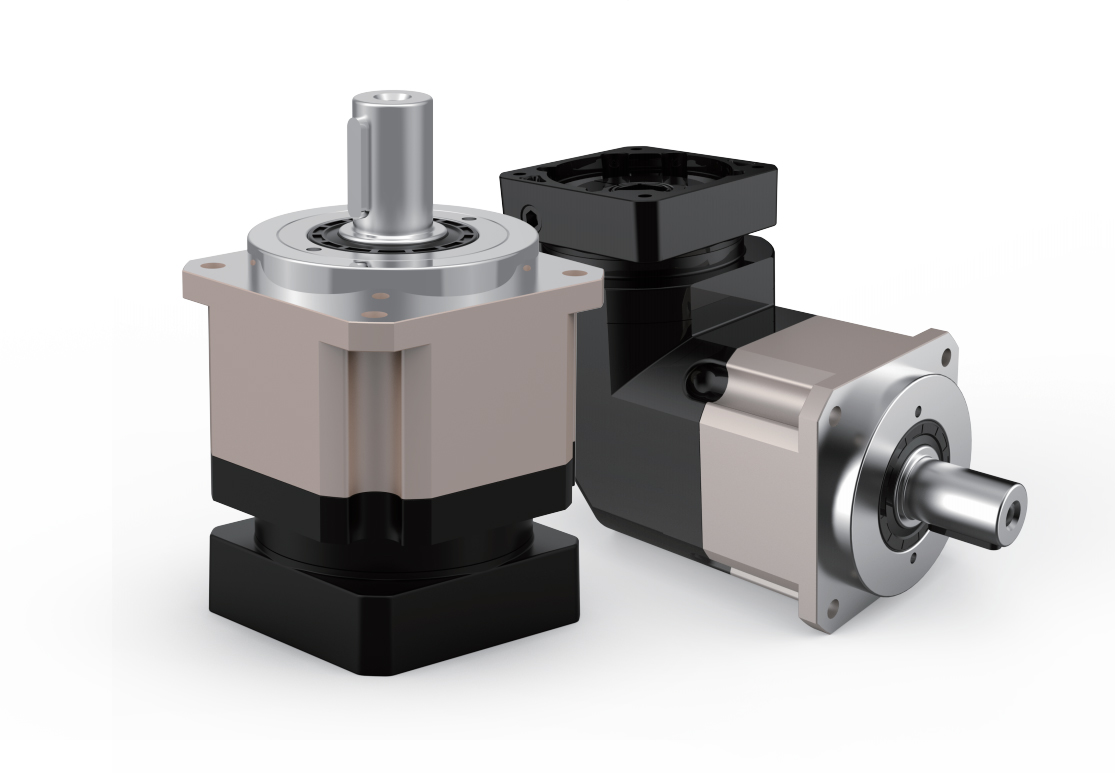

⚙ MB Standard vs MBR Configuration

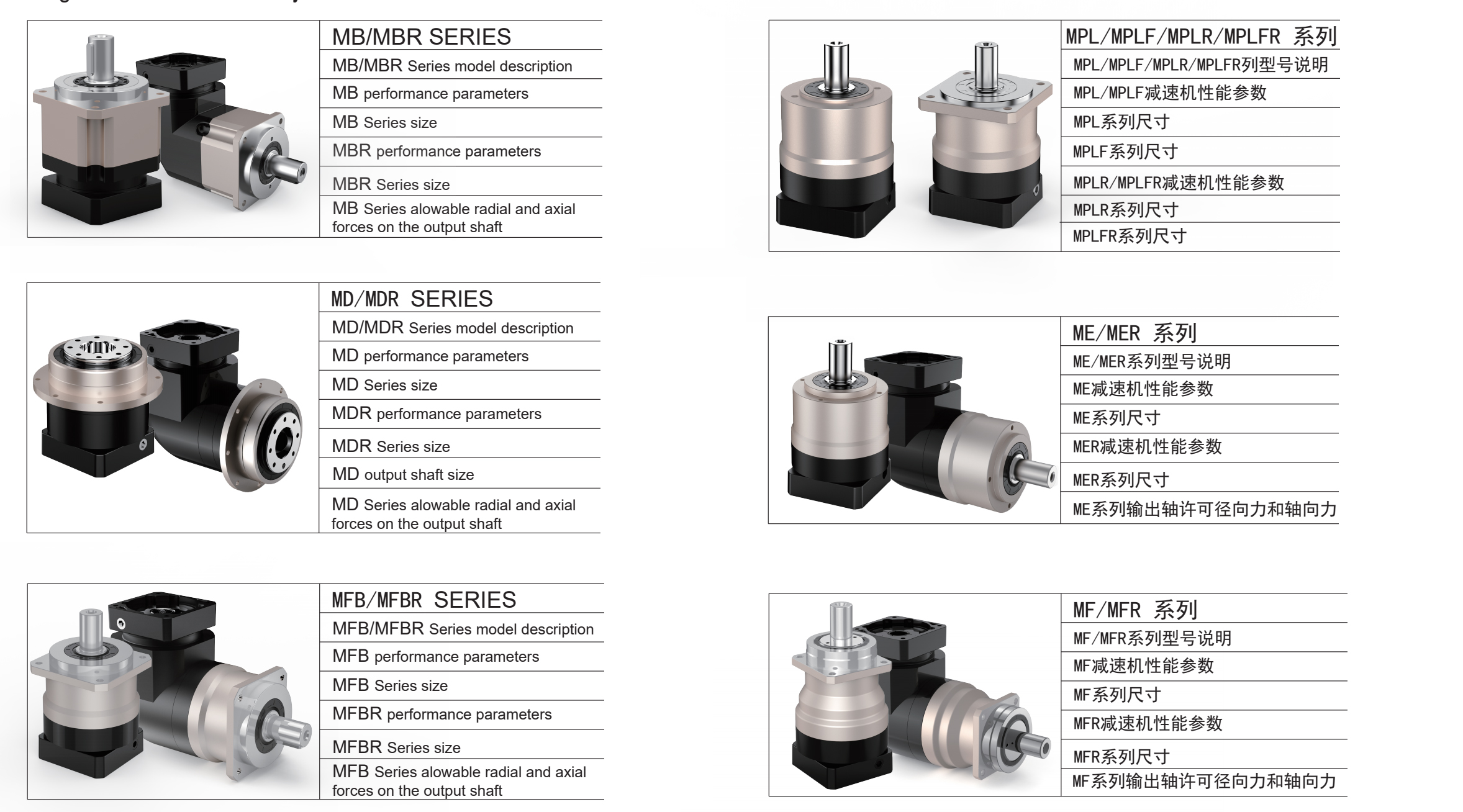

📐 Frame Size Comparison
| Parameter | Specification |
|---|
| Series | MB (Standard) / MBR (Extended Ratio Range) |
| Reducer Type | High-Precision Planetary Gearbox |
| Frame Size Range | 042, 060, 090, 115, 142, 180, 220 (mm) |
| Rated Output Torque | 14 Nm – 2000 Nm |
| Reduction Ratio — MB | Single stage: 3/4/5/6/7/8/10 Double stage: 12–100 |
| Reduction Ratio — MBR | Single stage: 3–20 Double stage: 12–200 |
| Backlash — MB | Single stage ≤1/3/5 arcmin Double stage ≤3/5/7 arcmin |
| Backlash — MBR | Single stage ≤2/4/6 arcmin Double stage ≤4/7/9 arcmin |
| Transmission Efficiency | ~97% (single stage) / ~94% (double stage) |
| Lubrication | Maintenance-free synthetic grease |
| Protection Rating | IP65 |
| Operating Temperature | -10°C to 90°C |
| Service Life | 20,000 hours |
| Mounting Orientation | Any orientation |
* Radial/axial load capacity and full mounting-hole dimensional drawings vary by frame size — available on request to match your exact servo motor model.
