Right-Angle Planetary Gearbox
MFB/MFBR Right-Angle Planetary Gearbox — Frame 060–220
Right-Angle Output · Output Torque 40 – 2000 Nm · Backlash ≤1 – 9 arcmin
The MFB/MFBR series is a right-angle precision planetary gearbox, using an internal bevel gear stage to turn the output 90° from the motor input — ideal where a compact right-angle layout saves installation space. MFB is the standard configuration; MFBR extends the reduction ratio range further for extra-low output speed needs. Available across 6 frame sizes (060–220mm) with rated output torque from 40Nm to 2000Nm and backlash grades down to ≤1 arcmin. Like the MB/MBR series, it uses maintenance-free synthetic grease lubrication and an IP65-rated housing for continuous-duty industrial and automation use.
Output Torque40 – 2000 Nm
Frame Size Range060 – 220 mm
Output DirectionRight-Angle (90°)
Product Features
Key design and engineering features of the MFB/MFBR right-angle planetary gearbox
✓
Right-angle (90°) output via internal bevel gear stage saves installation space
✓
Low backlash down to ≤1 arcmin (P0 grade) for precise, repeatable positioning
✓
High torsional rigidity and radial/axial load capacity for direct servo motor mounting
✓
6 frame sizes (060–220mm) covering output torque from 40Nm to 2000Nm
✓
Maintenance-free synthetic grease lubrication, rated for 20,000 hours service life
✓
IP65-rated housing, mountable in any orientation, operating range -10°C to 90°C
Technical Specifications
Full parameter data and dimensional reference

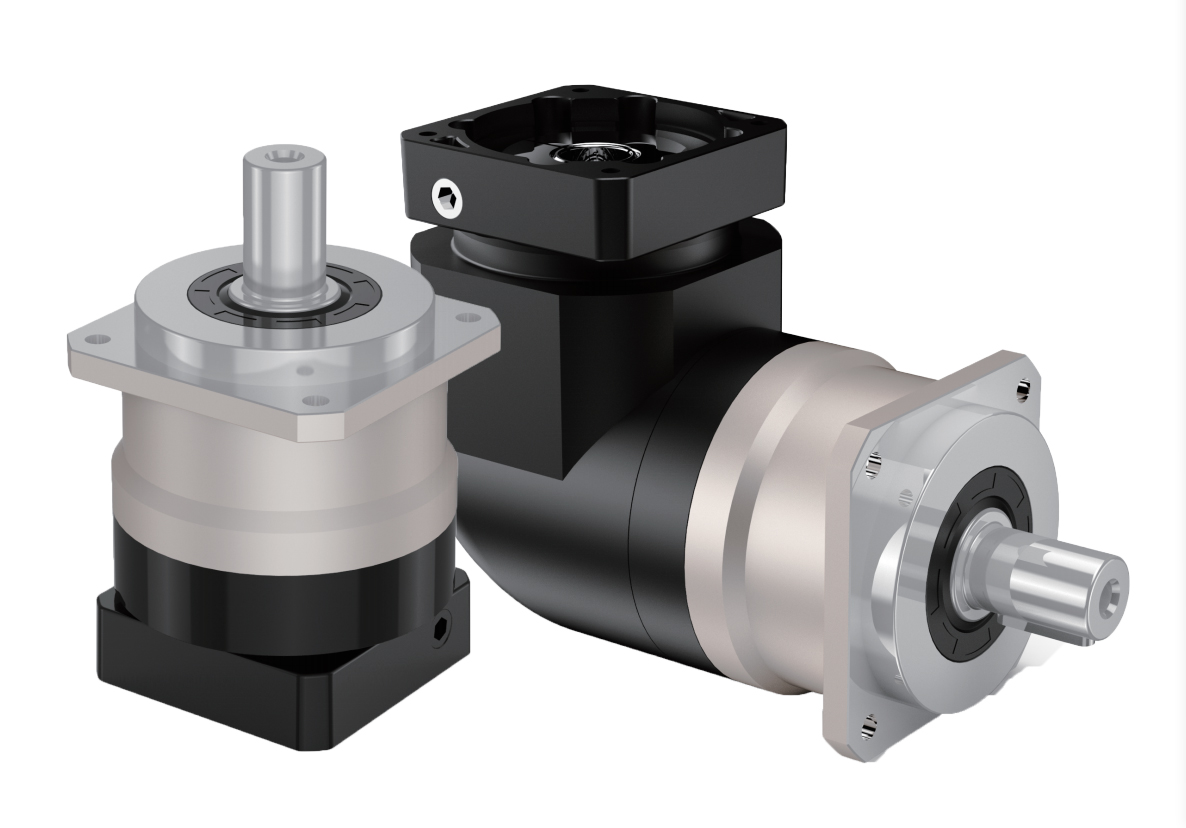

⚙ MFB Right-Angle Configuration

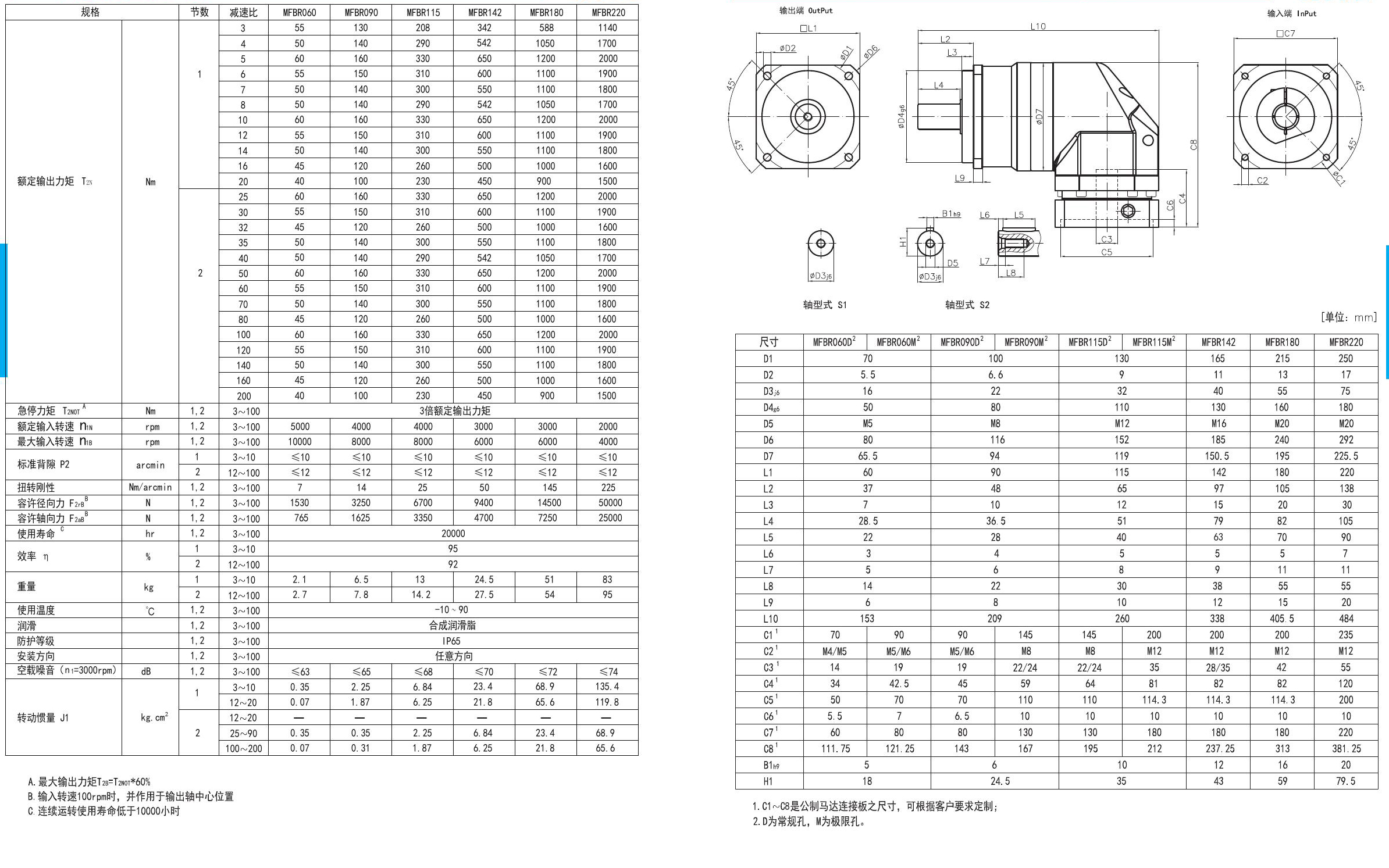

📐 Frame Size Comparison
| Parameter | Specification |
|---|
| Series | MFB (Standard) / MFBR (Extended Ratio Range) |
| Reducer Type | Right-Angle Precision Planetary Gearbox |
| Frame Size Range | 060, 090, 115, 142, 180, 220 (mm) |
| Rated Output Torque | 40 Nm – 2000 Nm |
| Reduction Ratio — MFB | Single stage: 3/4/5/6/7/8/10 Double stage: 12–100 |
| Reduction Ratio — MFBR | Single stage: 3–20 Double stage: 25–200 |
| Backlash | P0 ≤1 arcmin P1 ≤3 arcmin P2 ≤5 arcmin (grade varies by stage/size) |
| Transmission Efficiency | ~95% (single stage) / ~92% (double stage) |
| Lubrication | Maintenance-free synthetic grease |
| Protection Rating | IP65 |
| Operating Temperature | -10°C to 90°C |
| Service Life | 20,000 hours |
| Mounting Orientation | Any orientation |
* Radial/axial load capacity and full mounting-hole dimensional drawings vary by frame size — available on request to match your exact servo motor model.
