MPL/MPLF/MPLR/MPLFR Compact Planetary Gearbox — Frame 60–160
Compact Inline or Flange Output · Output Torque 40 – 650 Nm · Economical Servo Gearbox
The MPL family is a compact, economical planetary gearbox line covering 4 frame sizes (60–160mm) with output torque from 40Nm to 650Nm — sized for smaller servo motors and lighter-duty positioning tasks than the MB or MFB series. Four configurations are available: MPL (standard inline shaft output), MPLF (flange output for direct equipment mounting), MPLR (extended ratio range) and MPLFR (flange output with extended ratio range). Like the rest of the range, it uses maintenance-free synthetic grease lubrication and an IP65-rated housing suited to continuous-duty automation use.
Frame Size Range60 – 160 mm
Output TypeShaft (MPL) or Flange (MPLF)
Product Features
Key design and engineering features of the MPL compact planetary gearbox family
✓
Compact 4-size range (60–160mm) sized for small and mid-size servo motors
✓
Choice of shaft output (MPL) or flange output (MPLF) for flexible equipment mounting
✓
Standard or extended ratio range (R variants) to match your required output speed
✓
Low backlash down to ≤1 arcmin (P0 grade) for precise, repeatable positioning
✓
Maintenance-free synthetic grease lubrication, rated for 20,000 hours service life
✓
IP65-rated housing, mountable in any orientation, operating range -10°C to 90°C
Technical Specifications
Full parameter data and dimensional reference

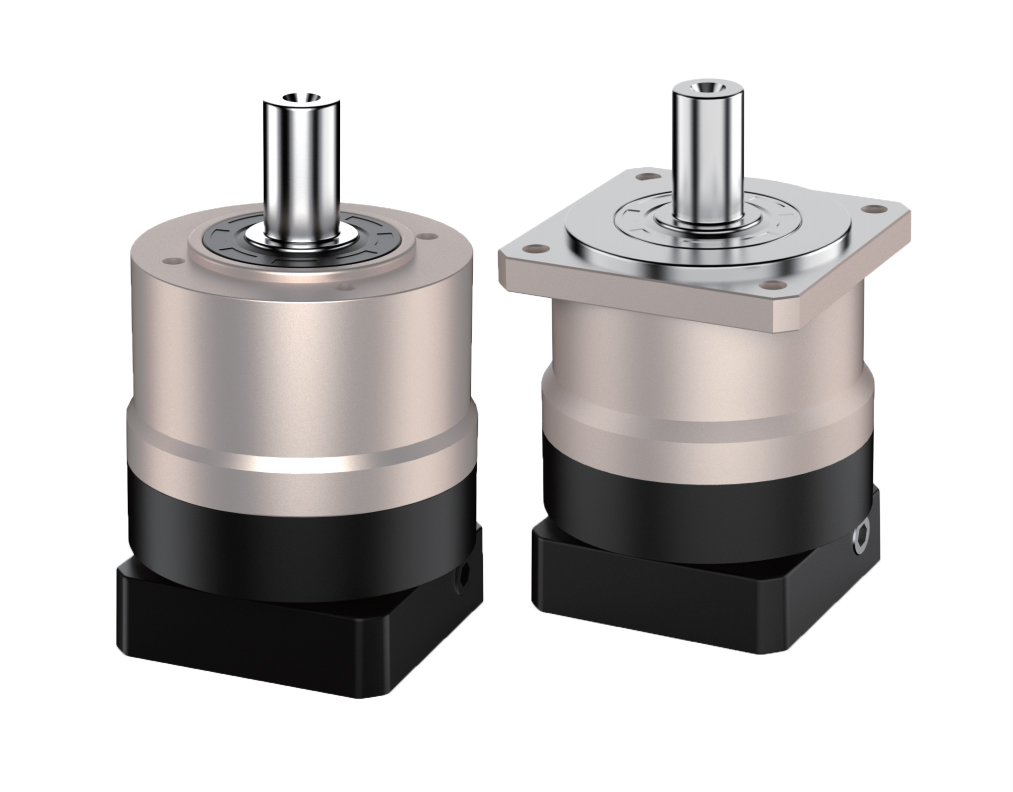

⚙ MPLF Flange Output Configuration

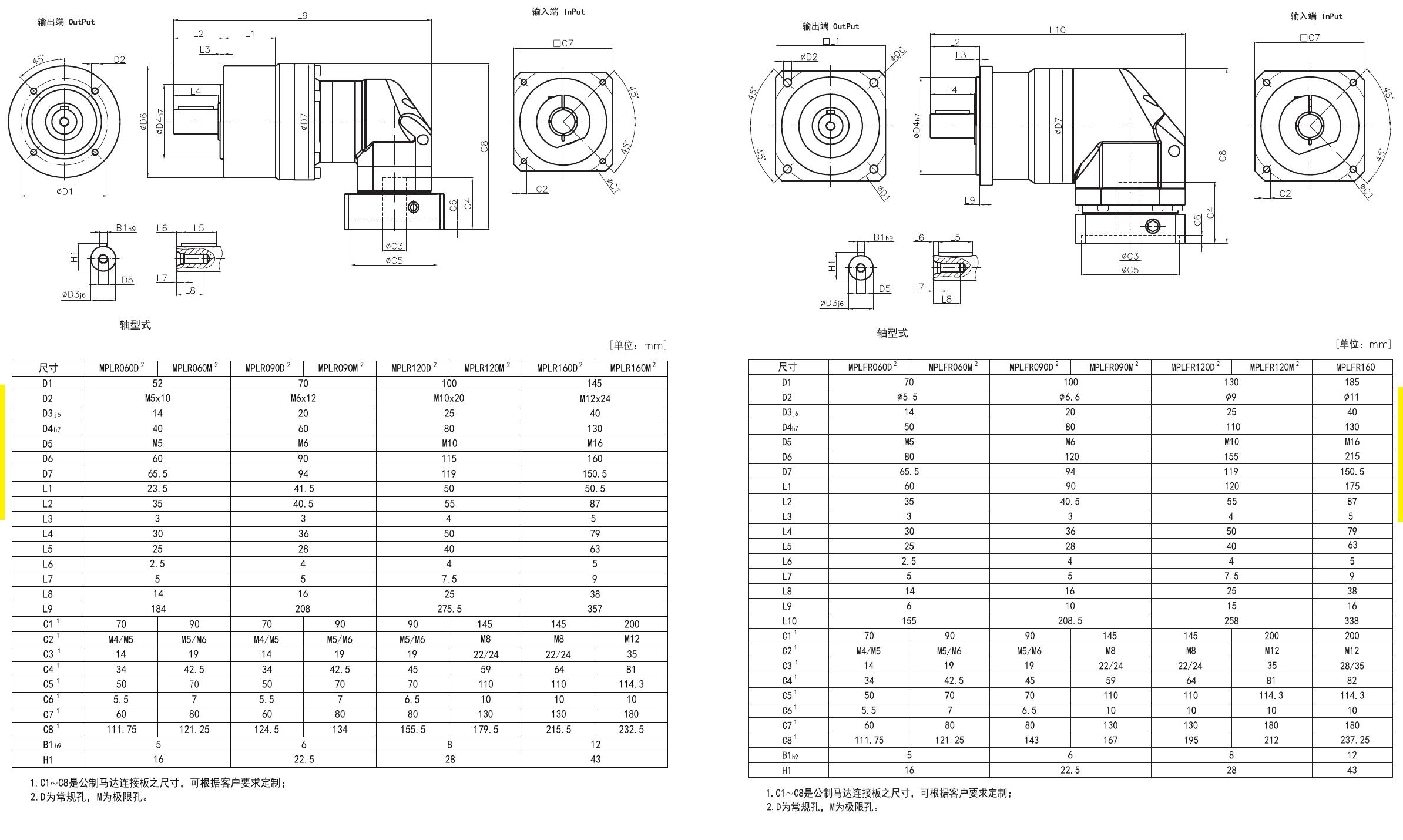

📐 Frame Size Comparison
| Parameter | Specification |
|---|
| Series | MPL (Shaft Output) / MPLF (Flange Output) / MPLR & MPLFR (Extended Ratio) |
| Reducer Type | Compact Precision Planetary Gearbox |
| Frame Size Range | 60, 90, 120, 160 (mm) |
| Rated Output Torque | 40 Nm – 650 Nm |
| Reduction Ratio — MPL/MPLF | Single stage: 3/4/5/6/7/8/10 Double stage: 12–100 |
| Reduction Ratio — MPLR/MPLFR | Single stage: 3–20 Double stage: 25–200 |
| Backlash | P0 ≤1 arcmin P1 ≤3 arcmin P2 ≤5 arcmin (grade varies by stage/size) |
| Lubrication | Maintenance-free synthetic grease |
| Protection Rating | IP65 |
| Operating Temperature | -10°C to 90°C |
| Service Life | 20,000 hours |
| Mounting Orientation | Any orientation |
* Radial/axial load capacity and full mounting-hole dimensional drawings vary by frame size — available on request to match your exact servo motor model.
